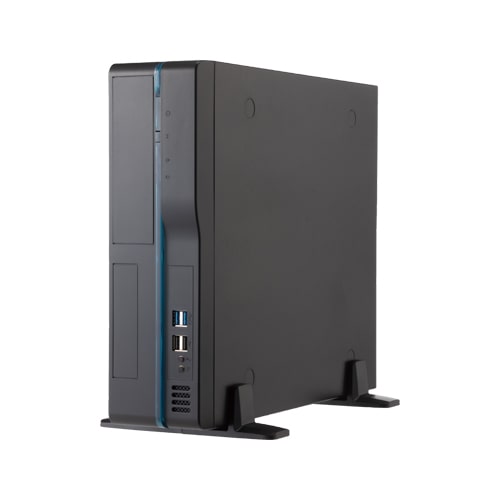

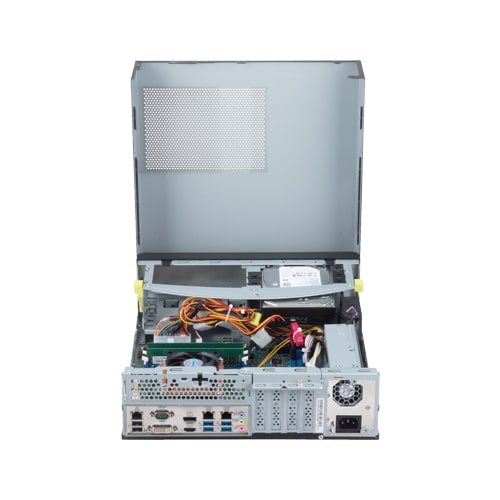

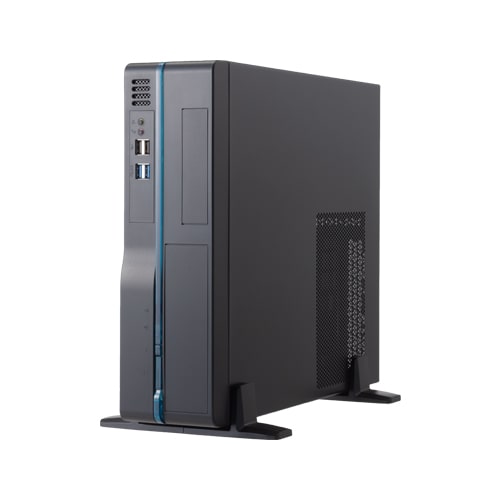

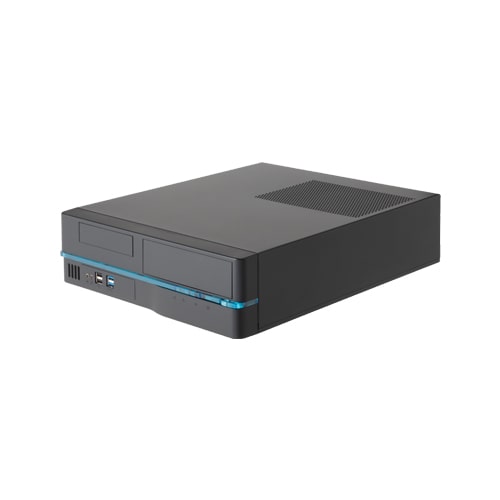

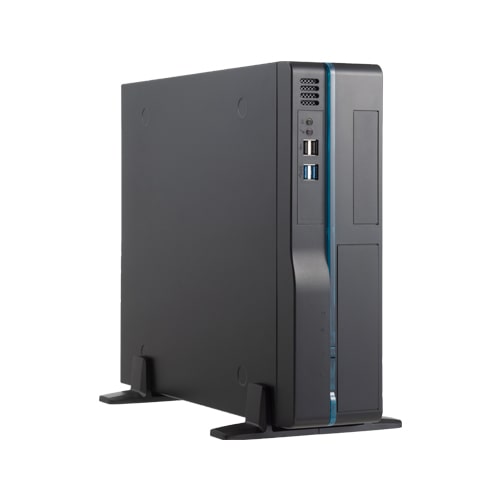

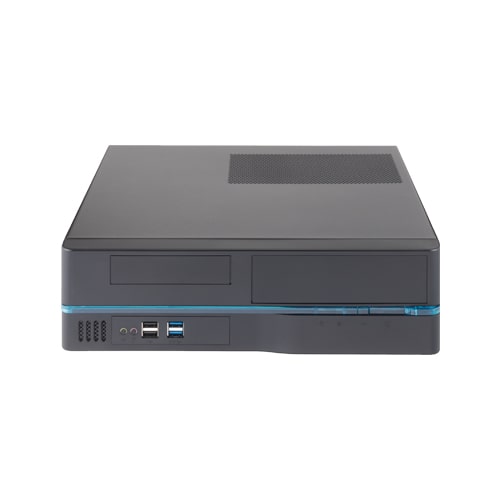

LPC-1700 Slim tower type computer LPC-1700 / Intel 8th Gen. (Coffee Lake + Q370) / 1x 3.5-inch drive bay

Standard Warranty3 yrs
Extended WarrantyAvailable

Compatible with Intel ® Core ™ processor series Coffee Lake
High-performance graphics with CPU embedded type
Rich variety of interfaces to expand your peripherals freely
A GPU board can be installed. 4 expansion slots

*
For details about an extended warranty, please contact us.

Specifications

Mechanical Design

Mounting	Desktop; Wall Mount

Software Support

Supported OS	Windows 10 IoT Enterprise 2019 LTSC 64-bit; Windows 10 IoT Enterprise 2019 LTSC64-bit + Office LTSC 2021 Embedded; Linux Ubuntu

Core System

Processor	Core i7-8700T; Core i5-8500; Core i5-8500T; Celeron G4900T
CPU Generation (Development code)	8th Gen. (Coffee Lake-S)
CPU socket	LGA1151
Memory	up to 32GB
RAS	Hardware monitor (Fan speed / Temperature / Voltage); Remote power-on; Remote reset; Watchdog timer
GPU	-
AI Performance	-
Security	TCG TPM 2.0

Interface

Video	1x DisplayPort; 1x HDMI; 1x DVI-I
LAN	3x 1000BASE-T
Wireless	-
Audio	1x Line out; 1x Line in; 1x Mic-in
I/O	6x USB3.2 Gen1 (USB3.0); 4x USB2.0; 1x RS-232C
Memory card	-

Expansion Slot

Expansion bus	1x PCI Express(x16); 2x PCI Express(x4); 1x PCI
Drive bay	1x 3.5-inch shadow bay (SATA)

Power

Input voltage	100 to 240VAC

Environment

Operating temperature	5 to 40°C (41 to 104°F)
Storage temperature	-20 to 60°C (-4 to 140°F)
Standards & Certifications	CE; FCC Class A; UKCA; VCCI Class A
