LPC-400 Business Computer LPC-400 - Fanless Embedded PC / Intel 12th Gen. Celeron J6412 (Elkhart Lake + SOC)

• Overview / Features
• Specifications
• Ordering Information
• Support / Downloads

Overview / Features

This product is a fanless computer with an Intel® Celeron J6412 processor for embedded applications. The product includes varied interfaces such as HDMI, two 1000BASE-T ports, three USB 3.2 Gen 2 (USB3.1), two USB2.0 and USB Type-C. Embedded-type CPU has been adopted. The use of readily available parts ensures the product to be applied easily. In addition, CONTEC-customized BIOS allows support to be provided at the BIOS level. It features a compact, low-profile chassis design and can be installed on the back of a display by using the optional VESA mounting bracket.

Usage Examples

• Ultra Compact Business Computer That Can Be Installed Anywhere

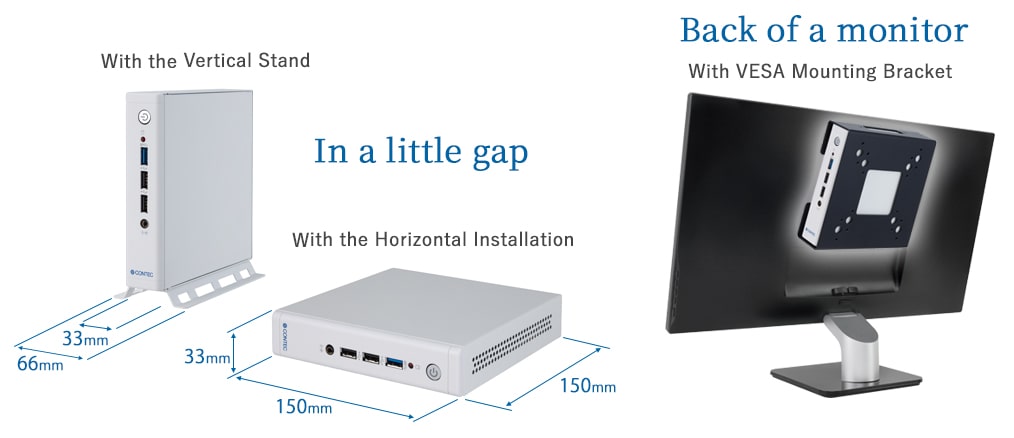

  • With a very compact size of 150 (W) × 150 (D) × 33 (H) mm, this product can be used with the vertical stand or VESA mounting bracket to be installed anywhere, from tight spaces on a desktop to the back of a monitor.



    ---

• Small size but with many expansion interfaces and security slots

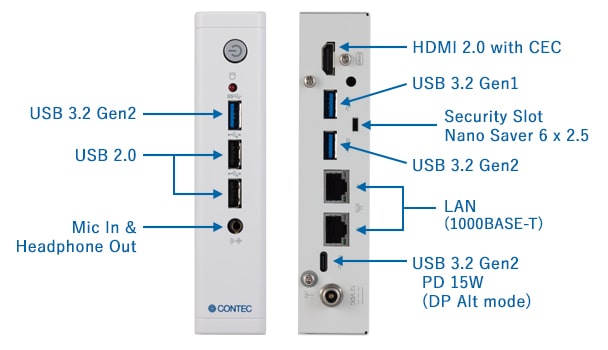

  • Interfaces including HDMI, 1000BASE-T x 2, USB 3.2 Gen2 (USB 3.1) x 3, USB 2.0 x 2 and USB Type-C x 1 are provided. By The optional VESA mounting bracket enables installation on the back of a VESA-compliant display. And Equipped with the security slot (Nano Saver 6 x 2.5).



    ---

• Embedded OS with lockdown function

  • Windows 10 IoT Enterprise LTSC 2021
    Reduced maintenance man-hours for long-term operation

    LTSC(Long-Term Servicing Channel) OS that can be used in the same environment for up to 10 years.
    Windows Update is only for critical quality updates. Functional updates are excluded, so the re-evaluation performed for each update is minimal. Maintenance man-hours can be reduced.

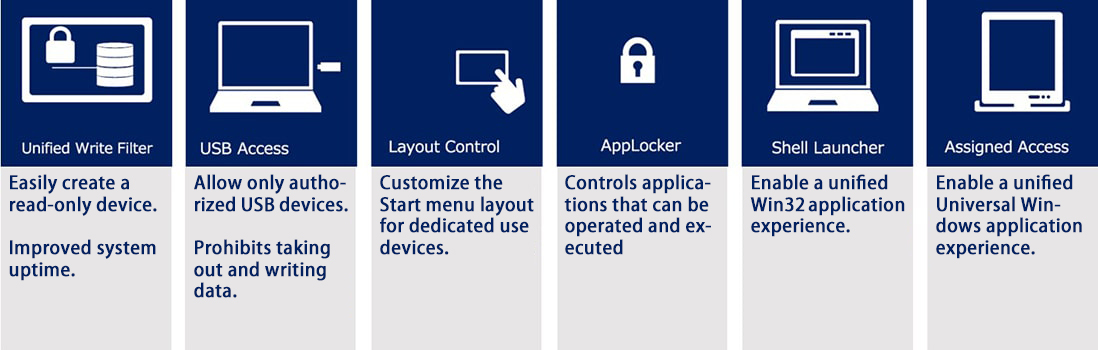

    Lockdown function for reliability and security



    ---

• CONTEC-customized BIOS provides useful utility

  • Useful utility of BIOS *1 customized by CONTEC is provided.
    The "Power Failure Protection™ " system protects data and prohibits writing to storage in the event of a power failure. The "CONTEC Fast Boot" achieves Windows startup in 10 seconds.*2 The "Disk Copy" function provides secure disk backup at the BIOS level, and also supports backup in file format or compressed file format. We also offer the CONTEC tools “BIOS update tool” for updating BIOS.*3
    Contec's Unique Functions


    • *1
      For details, see each setting in the [BIOS Setup] section.
    • *2
      It is the actual measured value when Windows 10 and HORM function are enabled at the factory. Time may vary depending on configuration. Note that TXE, TPM, Network Stack, and SMART Self Test are not supported when the CONTEC Fast Boot is enabled.
    • *3
      Contact your retailer for more information.
• Fanless design reduces maintenance work

  • The product is fan-less to ensure a totally spindle-less design that simplifies maintenance, relieving the concern about dust or foreign matter to get into the product. Moreover, along with minimized use of degrading parts greatly reduce maintenance work.
• Uses Intel® Celeron® J6412 processor

  • The Tremont micro-architecture CPU delivers high computing and rendering power while saving power. Reliable supply is ensured by the adoption of embedded CPUs。
