MR4100 Solution-ePC MR4100 - Rackmount 10th Gen. Intel Core (Comet Lake-S) / 1x PCIe(x16)/PCIe(x8) / 1x PCIe(x8) / 2x PCIe(x4) / 3x PCI

• Overview / Features
• Specifications
• Ordering Information
• Support / Downloads

Overview / Features

This product is a 19-inch rack-mount industrial computer that supports the 10th generation (Comet Lake-S) Intel® Core™ series and uses the W480E chipset. In addition to a wide variety of interfaces, it is equipped with expansion slots for PCI bus x 3, PCI Express (x16) bus x 1, PCI Express (x8) bus x 2, and PCI Express (x4) bus x 2. You can choose a highly reliable Japanese power supply. You can also select a 1000W power supply with a nickel-metal hydride battery that is ideal for power outages and momentary power outages, and a high-end GPU board.
Solution-ePC is a personal computer for industrial use that allows BTO (Build To Order) according to customer's request. It uses carefully selected parts for "high reliability" and "stable supply" and is suitable for industrial applications.

Usage Examples

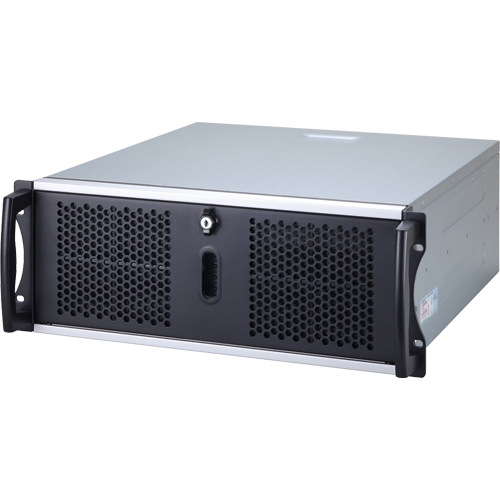

• High-power, 4U rack-mounted PC

  • This product is an EIA 19 rack-mounted (4U) industrial computer compatible with 10th generation Intel® Core™ processors (Comet Lake-S). It is ideal for fields equiring advanced multiprocessing such as semiconductor manufacturing equipment, inspection equipment, social infrastructure, and medical equipment.

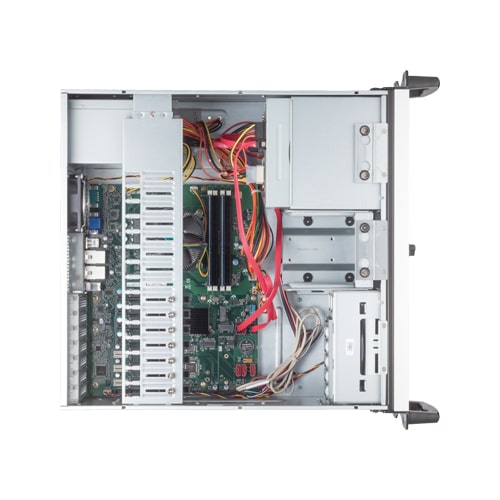

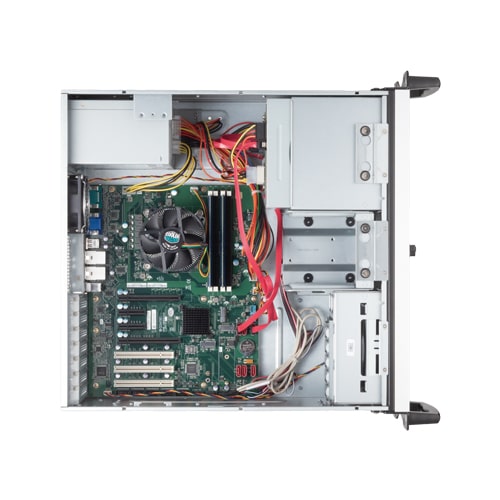

• Can house up to seven function expansion cards

  • This product is equipped with one PCI Express 3.0(x16), one PCI Express 3.0(x8), two PCI Express 3.0(x4), and three PCI expansion slots. It can house the signal input and output required for measurement control systems as well as multiple expansion interface cards required for AI/ML workloads and machine vision. Function expansion via M.2 modules is also possible.
    • *1
      When using the PCI Express 3.0(x8) slot, the PCI Express 3.0(x16) slot needs to be set to PCI Express 3.0(x8).
• Equipped with various interfaces as standard

  • This product is equipped with various expansion interfaces including one 2.5 Gigabit LAN port, one Gigabit LAN port, 10 USB ports, five COM communication ports, and video output ports (DisplayPort, HDMI, and analog RGB).In addition, M.2 sockets such as 1× M.2 M-key 2242/2280, 1× M.2 E-key 2230, and 1× M.2 B-key 3042/3052 are equipped, allowing the use of M.2 modules such as M.2 SSDs
• Supports Windows s 11 IoT Enterprise LTSC 2024 in multiple languages

  • Windows 11 IoT Enterprise LTSC 2024, an OS designed for specific applications, can be selected in one of four languages: English, Japanese, Chinese, and Korean. This OS can be used as a long-term fixed version with no function updates. The built-in lockdown function allows users to limit writing to storage.
• MIRACLE LINUX 9.0 support

  • Cybertrust MIRACLE LINUX 9.0, a clone of RHEL (Red Hat Enterprise Linux) developed in Japan, can be selected. A support menu (purchase required) equivalent to MIRACLE LINUX Standard Support is provided as an OEM license (Japanese version only).
