MR4310 Solution-ePC MR4310 - 19" Rackmount PC / Intel 13th(Raptor Lake) / 1× PCIe(x16) or 1× PCIe(x8) / 1x PCIe(x4) / 5×PCI / AC Power Supply

  • NEW
  • Standard Warranty3 yr
  • Extended WarrantyAvailable
  • モーダルで開く
  • モーダルで開く
  • モーダルで開く
  • モーダルで開く
  • モーダルで開く

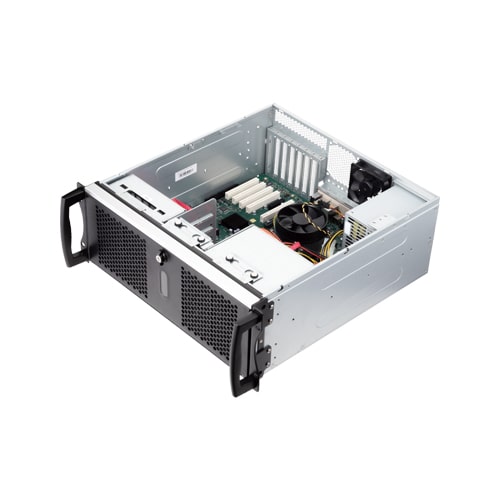

  • High-power, 4U rack-mounted PC
  • Can house up to seven function expansion cards
  • Equipped with various expansion interfaces
  • Supports Windows 10 IoT Enterprise 2021 LTSC in multiple languages
  • MIRACLE LINUX 9.4 support (Japanese version only)
  • *
    For details about an extended warranty, please contact us.

Models with Windows 11 IoT Enterprise LTSC 2024 will be available.
Check the latest info in our newsletter. Not a member yet? Register now.

Similar models

Specifications

Mechanical Design

Mounting Rack Mount

Software Support

Supported OS Windows 10 IoT Enterprise 2021 LTSC 64-bit; MIRACLE LINUX9.4

Core System

CPU Generation (Development code) 13th Gen. (Raptor Lake-S)
Processor Core i9-13900E; Core i7-13700E; Core i5-13500E; Core i3-13100E
CPU socket LGA1700
Memory up to 64GB
RAS Hardware monitor (Fan speed / Temperature / Voltage)
GPU -
AI Performance -
Security TCG TPM 2.0

Interface

Video 1x HDMI; 1x DVI-I
LAN 2x 1000BASE-T/100BASE-TX/10BASE-T
Wireless -
Audio 1x Line out; 1x Line in; 1x Mic-in
I/O 2x RS-232C/422A/485
Memory card -

Expansion Slot

Expansion bus 1x PCI Express(x16)/(x8); 1x PCI Express(x4); 5x PCI
Drive bay 2x 3.5-inch bay (SATA); 3x 5-inch bay (SATA)

Power

Input voltage 90 to 264VAC

Environment

Operating temperature 5 to 40°C (41 to 104°F)
Storage temperature -20 to 60°C (-4 to 140°F)
Standards & Certifications CE; FCC Class A; VCCI Class A
