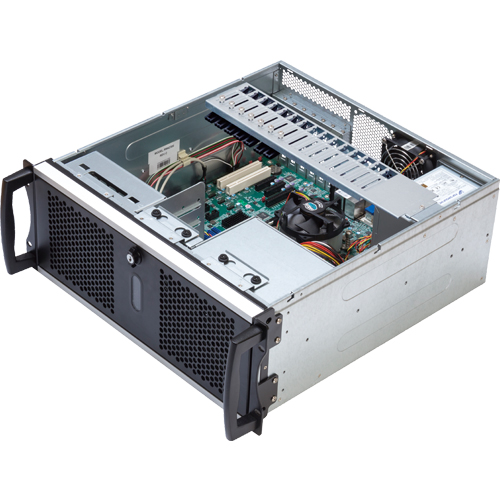

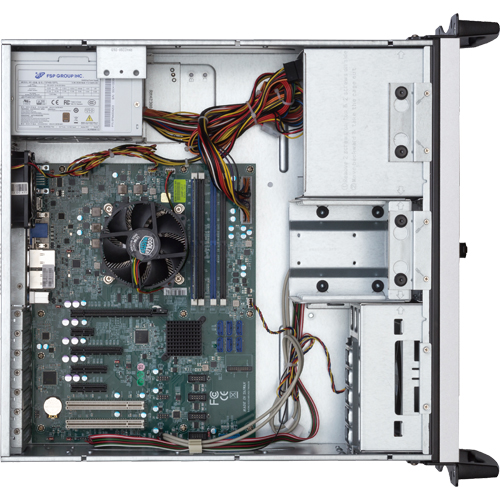

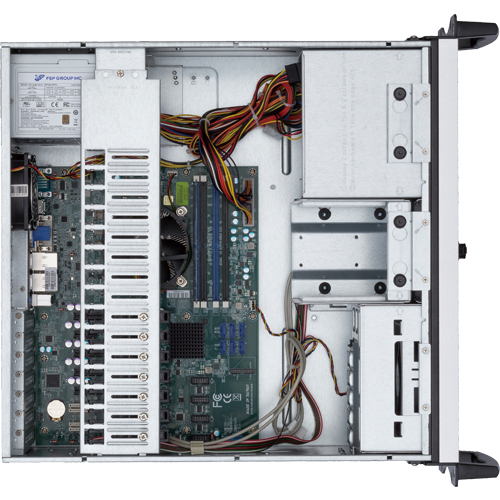

SPF14MQ1700 Industrial Computer SPF14MQ1700 - Rackmount / 6th Gen. Intel Core (Skylake) / 1x PCIe(x16) / 1x PCIe(x8) / 2x PCIe(x4) / 1x PCIe(x1) / 2x PCI

* The end of repair date may change depending on the situation.

Ordering Information

Model	Definition
Solution-ePC MR4100 - Rackmount 10th Gen. Intel Core (Comet Lake-S) / 1x PCIe(x16)/PCIe(x8) / 1x PCIe(x8) / 2x PCIe(x4) / 3x PCI MR4100	Compatible with the 10th generation Core processor "Comet Lake". Equipped with 7 slots including PCI and PCI Express bus slots. (PCIx3, PCI Express(x16)/(x8)x1, PCI Express(x4)x2, PCI Express(x8)x1) It is a custom computer equipped with various interfaces as standard. For details, please see datasheets and manuals.

Model	Description	Certification
SPF14MQ1700 [Limited Stock]	[End of Repair Service : 10 January, 2030] Industrial Computer SPF14MQ1700 - Rackmount / 6th Gen. Intel Core (Skylake) / 1x PCIe(x16) / 1x PCIe(x8) / 2x PCIe(x4) / 1x PCIe(x1) / 2x PCI

This product is ordered by BTO (Build to Order) method. Please inform the dealer about the BTO menu and request a quotation.

CPU	Core i7 6700 Core i5 6500 Celeron G3900
Memory	4GB 8GB 16GB 32GB
Power supply	400W 520W (NIPRON) 520W with battery (NIPRON)
Storage	2TB HDD 2TB HDD Removable 256GB SSD none
Optical drive	DVDｰmulti drive none
OS	Windows 10 IoT Enterprise 2019 LTSC 64-bit Multi-language Windows 10 IoT Enterprise LTSB 2016 64-bit Multi-language Windows 7 Professional SP1 32bit (Japanes Version) Windows 7 Professional SP1 64bit (Japanes Version) none
Extension option	USB2.0×1(2-port) USB2.0×2(4-port) USB3.0×1(2-port) PS/2×1(1-port)
Option	109 Japanese Keyboard (USB) 104 English Keyboard (USB) Mouse (USB) Vertical stand

* There are combinations that can not be configured. Please inquire in detail.

Item	Item Name
HDD-2TS-3	3.5-inch 2TB SATA Hard Disk Drive
HDD-2TS-3R	3.5-inch 2TB SATA Hard Disk Drive, RAID
