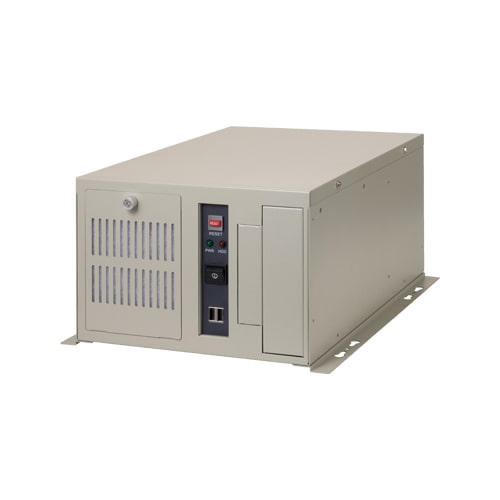

SPF6SQ1700 Industrial Computer SPF6SQ1700 - Wallmount PC / Intel 6th/7th Gen. Core (Skylake/Kaby Lake + Q170) / 1x PCIe(x8) / 4x PCI / AC Power Supply

• Overview / Features
• Specifications
• Ordering Information
• Support / Downloads

Overview / Features

This product is a compact-sized industrial computer that is compatible with 6th-generation (Skylake) and 7th-generation (Kaby Lake) Intel® Core™ series processors and adopts the Q170 chipset. In addition to a wide range of interfaces, the product also includes four PCI bus expansion slots and one PCI Express (x8) bus expansion slot. The product adopts a reliable, Japan-made power supply (made by Nipron). Furthermore, in the 6th generation (Skylake), Windows 7 can be selected as the OS, so it is also recommended for replacing the system developed exclusively for Windows 7.
Solution-ePC is an industrial-use computer that offers BTO (Build to Order) specifications to suit the requests of customers.
Only carefully selected components offering high reliability and stable supply are used, making the product suitable for industrial use.
Various selections and options are available to meet customer requests, including OS, CPU, memory, and storage options.

• Compatible with Intel® Core™ processor series Skylake/Kaby Lake

  • Available with a power-saving, high-performance 6th- or 7th-generation Core processor for advanced computation and drawing performance while minimizing power consumption.
• Supports pre-installation of Windows 7 Pro and WES 7

  • If you select the 6th generation (Skylake) CPU, it is possible to use Windows 7 Pro and WES 7 as the OS. It makes you inherit the assets developed under Windows 7 environment.
    • *
      Microsoft's support period for Windows 7 has been ended on January 14, 2020. After the support period, you are no longer receive all support, including regular security updates and paid support.
• Compact wall-mounted design

  • The compact size allows for installation in spaces as small as 254 mm (W) x 410 mm (D) x 175 mm (H).
• Expandable to up to five PCI and PCI Express slots

  • Take advantage of four PCI bus expansion slots and one PCI Express (x8)(x4 signal) bus expansion slot.
• Rich variety of interfaces for freely expandable peripherals

  • It has a variety of extended interface such as PCI Express (×8) (x4 signal) x 1slot, PCI x 4, DVI-I x 1, 1000BASE-T x 2, USB3.1 Gen1 (USB3.0) x 5 (Max.), USB2.0 x 2, serial (RS-232C) x 2 (Max.), serial (RS-232C/RS-422A/RS-485) x 2 (Max.).
• Reliable, Japan-made power supply

  • The power supply an essential component of the product is made in Japan for superior reliability and system performance.
