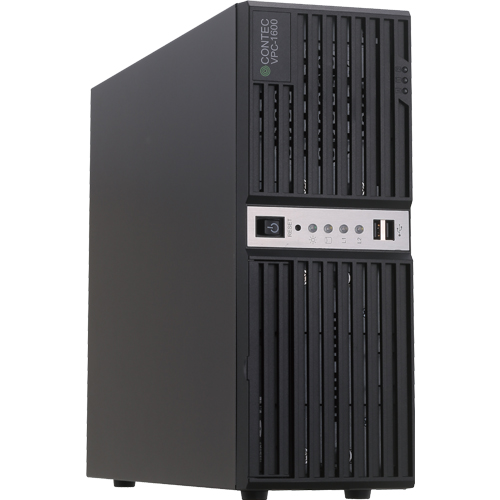

VPC-1600 Industrial Computer VPC-1600 - Slim Tower / Core i + Q87 (Haswell) / 3x PCI

Discontinued

Standard Warranty3 yr
Extended WarrantyAvailable

End of Repair Service: 2026/09/30

Check a compatible replacement

* The end of repair date may change depending on the situation.

Equipped with a low power consumption CPU
Intel(R) Q87 Chipset is adopted
Correspond to mirroring (RAID1)
Supports high-speed high-capacity memory

*
For details about an extended warranty, please contact us.
*
This product is sold with the CE marking as a declaration of compliance with the European Directive. However, the related Low Voltage Directive EN 60950-1 will be forcibly expired on 20 December, 2020, and you will not be able to sell to Europe from that date onwards.

Specifications

Mechanical Design

Mounting	Desktop

Software Support

Supported OS	Windows 10 IoT Enterprise LTSB 2016 64-bit; Windows 7 Ultimate (FES) 32-bit; Windows 7 Professional (FES) 64-bit; Windows 7 Professional (FES) 32-bit; Windows Embedded 8.1 Industry Pro 64-bit

Core System

Processor	Core i5-4570TE; Celeron G1820TE
CPU Generation (Development code)
CPU socket
Memory	16GB; 8GB; 4GB
RAS	Hardware monitor (Fan speed / Temperature / Voltage); Remote power-on; Remote reset; Watchdog timer
GPU
AI Performance
Security	-

Interface

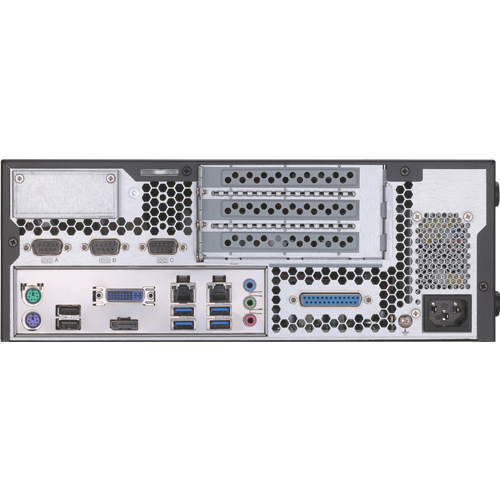

Video	1x DisplayPort; 1x DVI-I
LAN	2x 1000BASE-T
Wireless
Audio	1x Line out; 1x Line in; 1x Mic-in
I/O	4x USB3.2 Gen1 (USB3.0); 4x USB2.0; 4x RS-232C; 1x LPT; 2x PS/2
Memory card	-

Expansion Slot

Expansion bus	3x PCI
Drive bay	2x 3.5-inch bay (SATA)

Power

Input voltage	100 to 240VAC

Environment

Operating temperature	5 to 40°C (41 to 104°F)
Storage temperature	-20 to 60°C (-4 to 140°F)
Standards & Certifications
