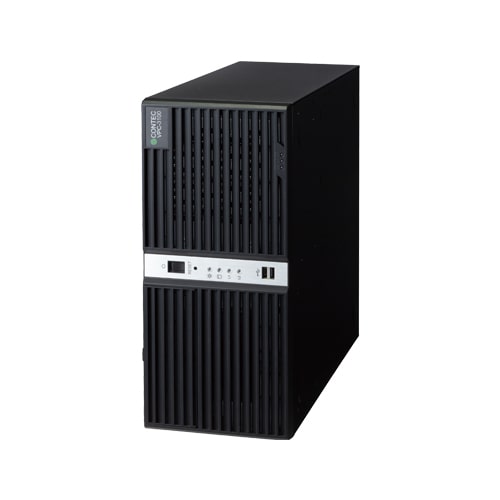

VPC-3100-G Industrial Computer VPC-3100-G - Desktop / Middle Tower / Intel 8th Gen.(Coffee Lake + Q370) / 1x PCIe(x16) / 2x PCIe(x4) / 1x PCI

• Overview / Features
• Specifications
• Ordering Information
• Support / Downloads

Overview / Features

This product is a BTO industrial computer that is equipped with a 8th generation Intel® Core™ processor series. The Intel® Q370 chipset with DDR4 memory (8GB to 32GB) provides advanced computing and graphical performance. This product features a variety of interfaces such as one each port of DVI-I, HDMI, DisplayPort, four USB3.1 Gen1(USB3.0) ports (rear: 4), four USB2.0 ports (front:2, rear:2), five serial ports (RS-232C/422A/485×1, RS-232C×4), and three 1000BASE-T ports, which can be used in a wide range of embedded applications such as general-purpose PC OS-based controllers and information terminals.

• Intel® Core™ processor series Coffee Lake Supported

  • This product contains a power-saving, high performance 8th generation Intel® Core™ processor and provides advanced computing and graphical performance without consuming massive power. Taking up CPU embedded type can contribute to longer-term product availability.
• High-performance graphics with CPU embedded type

  • Full HD video can be smoothly played with the Intel® HD Graphics 630/610. Furthermore, the product can support full HD outputs from three screens of the DVI-I, DisplayPort, and HDMI.
• Mirroring (RAID1) supported

  • Mirroring (hardware or software option) can be configured to suit the application and ensure the system to be redundant.
• Removable storage adopted

  • The front-accessible 3.5 inch SATA storage supports mirroring and other RAID functions.
• Expand your peripherals with various interfaces

  • Interfaces including DVI-I, HDMI, DisplayPort, 1000BASE-T x 3, USB3.1 Gen1 (USB3.0) x 4, USB2.0 x 4, serial port (RS-232C/RS-422A/RS485 x 1, RS-232C x 4), and audio are provided.
