VPC-4100 Industrial Computer VPC-4100 - Desktop PC / Rackmount PC / Intel 12th or 13th Gen. / 1x PCIe(x16), 2x PCIe(x4), 1x PCI / RAID

• Overview / Features
• Specifications
• Ordering Information
• Downloads / Support

Overview / Features

This product is a 19-inch rack-mount industrial computer that is equipped with an 12th generation Intel^® Celeron^® processor and 13th generation Intel^® Core™ processor series. The Intel^® Q670 chipset with DDR5 memory (16GB - 128GB) provides advanced computing and graphical performance. This product is available in two chassis types to accommodate different maintenance requirements and usage frequencies.

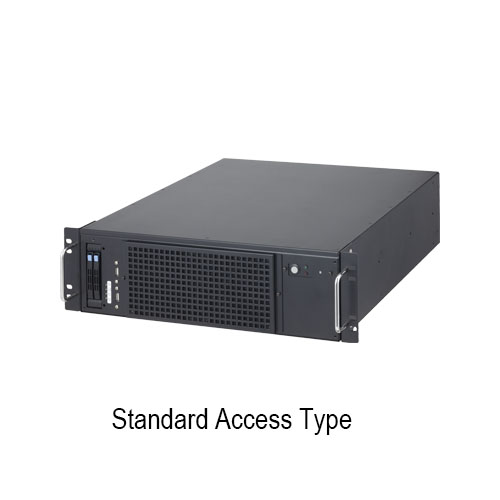

- Standard Access Type (S Type)…The drive bays are located on the front, and the main interface section is located on the back.
- Front Access Type (F Type)…The drive bays and interface section are located on the front.
This product features a variety of interfaces such as one each port of DVII, HDMI, DisplayPort, four USB 3.2 Gen2(USB 3.1) ports, two USB 3.2 Gen1(USB 3.0) ports, two USB 2.0 ports, one serial ports (RS-232C), two 2.5GBASE-T and one 1000BASE-T port, which can be used in a wide range of embedded applications such as general-purpose PC OS-based controllers and information terminals.

• High-power, 3U rack-mounted PC

  • This product is an EIA 19 rack-mounted (3U) industrial computer compatible with 12th generation Intel^® Celeron^® processors and 13th generation Intel^® Core^™ processors. Reliable supply is ensured by the adoption of embedded CPUs.
• High-performance graphics with CPU embedded type

  • Full HD video can be smoothly played with the Intel^®UHD Graphics 770/730/710. It also supports full HD output of the three-screen with the DVI-I, DisplayPort and HDMI.
• Mirroring (RAID1) supported

  • Mirroring (hardware option) can be configured to suit the application and ensure the system to be redundant.
• Removable storage adopted

  • The product adopts front accessible 3.5-inch SATA storage, and also supports RAID function such as mirroring.
• Rich variety of interfaces to expand your peripherals freely

  • Interfaces including DVI-I, HDMI, DisplayPort, 2.5GBASE-T x2,1000BASE-T x 1, USB 3.2 Gen2(USB 3.1) x 4, USB 3.2 Gen1 (USB 3.0) x 2, USB 2.0 x 2, serial port x 1(RS-232C), and audio are provided.
