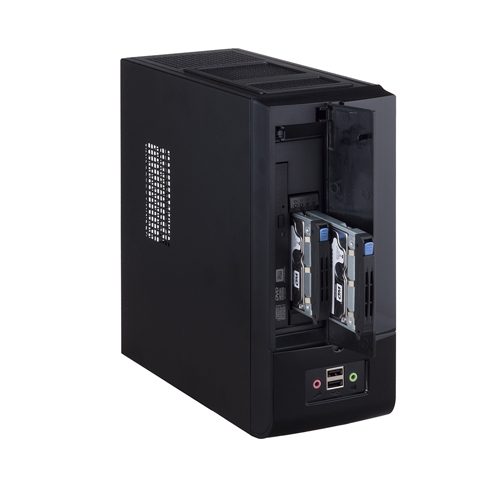

VPC-700 Industrial Computer VPC-700 - Ultra Small / 6th Gen. Intel Core (Skylake) / 1x Low Profile PCIe(x16)

  • Standard Warranty3 yr
  • Extended WarrantyAvailable
  • モーダルで開く
  • モーダルで開く
  • モーダルで開く
  • モーダルで開く
  • モーダルで開く
  • Equipped with Powerful 6th Gen. Intel® Core™ processor for edge computing
  • 3 independent Gigabit LAN ports to connect different network segments
  • Built-in GPU supports 4K resolution and output to three screens
  • Equipped with one expansion slot that can house Low Profile PCI Express(x16) card
  • Supports mirroring (RAID1)
  • Small computer with a dimension of 112 (W) × 263 (D) × 264 (H)
  • *
    For details about an extended warranty, please contact us.

Ordering Information

Ordering Information

Model Description Certification
VPC-700 Industrial Computer VPC-700 - Ultra Small / 6th Gen. Intel Core (Skylake) / 1x Low Profile PCIe(x16)
  • CE marking
  • FCC compliant
  • VCCI

BTO model

This product is ordered by BTO (Build to Order) method. Please inform the dealer about the BTO menu and request a quotation.
CCC Cetificated Model :
If bold components are selected, CCC certificated model will be provided.

CPU
  • Core i7-6700TE
  • Core i5-6500TE
  • Celeron-G3900TE
Memory
  • 8GB (1 x 8GB)
  • 16GB (2 x 8GB)
Storage
  • None
  • 1 x 500GB HDD
    (Last Order: 13 Dec, 2024)
  • 2 x 500GB HDD
    (Last Order: 13 Dec, 2024)
  • 2 x 500GB HDD Mirroring(RAID1) (Software-RAID)
    (Last Order: 13 Dec, 2024)
  • 2 x 500GB HDD Mirroring(RAID1) (Hardware-RAID)
    (Last Order: 13 Dec, 2024)
  • 1 x 256GB SSD(MLC)
  • 2 x 256GB SSD(MLC)
  • 2 x 256GB SSD(MLC) Mirroring(RAID1) (Software-RAID)
  • 2 x 256GB SSD(MLC) Mirroring(RAID1) (Hardware-RAID)
OS
  • None
  • Windows 10 IoT Enterprise LTSB 2016 64-bit (English/Chinese/Japanese/Korean)
  • Windows 10 IoT Enterprise 2019 LTSC 64-bit with Microsoft Edge (Chromium) (English/Chinese/Japanese/Korean)
  • Windows 10 IoT Enterprise 2019 LTSC 64-bit (English/Chinese/Japanese/Korean)
  • Windows 7 Professional FES 32-bit (English or Japanese. Select at initial setup)
    (Last Order: 31 May, 2024)
  • Windows 7 Professional FES 64-bit (English or Japanese. Select at initial setup)
    (Last Order: 31 May, 2024)
Extension COM Port Option
  • None
  • COM Port x1
  • COM Port x2(Expansion slot x 1 occupied)
Top Cover
  • None
  • Yes
CCC Certification
  • None
  • Yes

※ There are combinations that cannot be configured. Please inquire in detail.
※ In case of above CCC model, if HDD is selected Linux Ubuntu will be pre-installed for system check (not supported) and if SSD the OS will be Windows 10.
※ In case of above CCC model, in addition to 125V AC cable, 250V AC cable in compliant with CCC will be also included.
※ Upon customers’ requirement, any other CCC certificated model can be provided. For more details, please ask.
