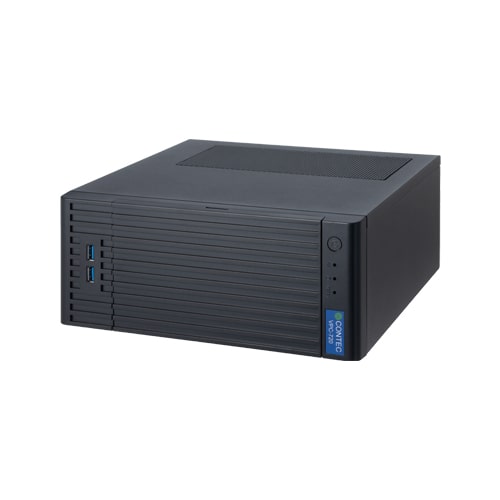

VPC-720 Industrial Computer VPC-720 - Ultra Small / 13th Gen. Intel® Core™ Processor (Raptor Lake)

Standard Warranty3 yr
Extended WarrantyAvailable

Supports Intel® Core™ Processor Series Raptor Lake
Compact size that can be installed in a small space

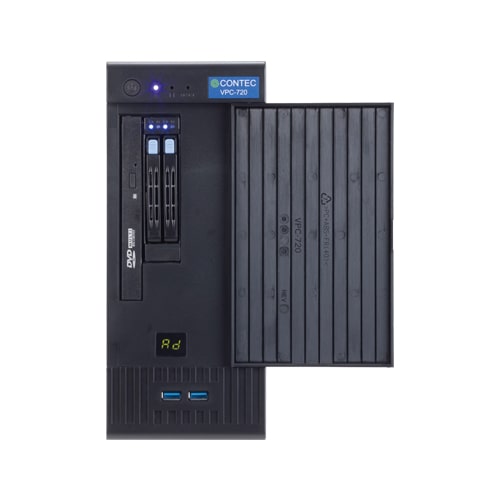

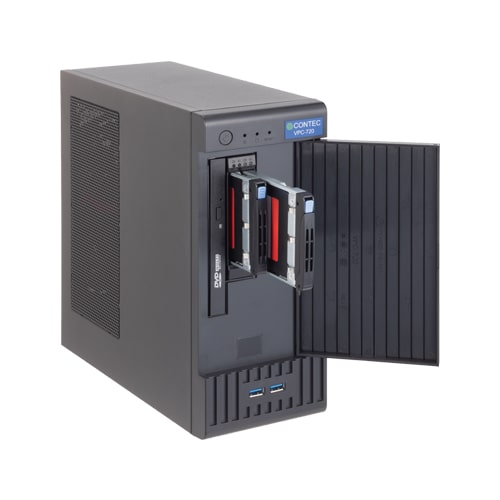

Adopts removable storage structure
Supports mirroring (RAID1)
Abundant interfaces for freely expanding peripheral devices
Compatible with Trellix white listing anti-virus software

*
For details about an extended warranty, please contact us.

Models with Windows 11 IoT Enterprise LTSC 2024 are available.
Check the latest info in our newsletter. Not a member yet? Register now.

Specifications

Mechanical Design

Mounting	Desktop

Software Support

Supported OS	Windows 11 IoT Enterprise LTSC 2024; Windows 10 IoT Enterprise 2021 LTSC 64-bit

Core System

CPU Generation (Development code)	13th Gen. (Raptor Lake-S); 12th Gen. (Alder Lake-S)
Processor	Core i7-13700TE; Core i5-13500TE; Core i3-13100TE; Celeron G6900TE
CPU socket	-
Memory	up to 32GB
RAS	Hardware monitor (Fan speed / Temperature / Voltage); Remote power-on
GPU	-
AI Performance	-
Security	TCG TPM 2.0

Interface

Video	2x DisplayPort; 1x HDMI
LAN	1x 2500BASE-T/1000BASE-T/100BASE-TX/10BASE-T; 1x 1000BASE-T/100BASE-TX/10BASE-T
Wireless	-
Audio	1x Line out; 1x Mic-in
I/O	6x USB3.2 Gen1 (USB3.0); 2x USB2.0; 2x RS-232C/422A/485
Memory card	-

Expansion Slot

Expansion bus	1x PCI Express(x16)
Drive bay	2x 2.5-inch bay (SATA)

Power

Input voltage	100 to 240VAC

Environment

Operating temperature	5 to 40°C (41 to 104°F)
Storage temperature	-20 to 60°C (-4 to 140°F)
Standards & Certifications	CCC; CE; FCC Class A; UKCA; UL/cUL; VCCI Class A
