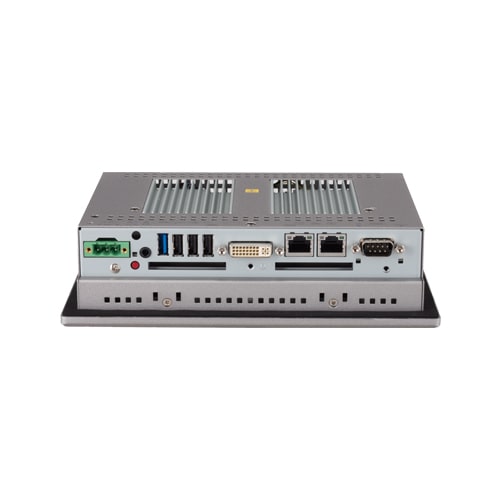

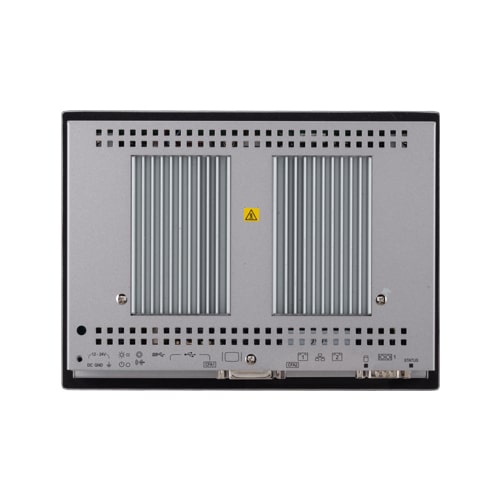

PT-M07WA-120 Panel PC PT-M07WA Touch Screen PC / Panel Mountable / 7-inch LCD with resistive touch panel / Atom E3845 (BayTrail SoC) / DC Power Supply

Limited Stock

Standard Warranty3 yr
Extendy WarrantyAvailable

End of Repair Service: 2030/08/19

Check a compatible replacement

* The end of repair date may change depending on the situation.

Contributing to running cost reduction and energy efficiency
Fanless design that reduces maintenance and inspection work
Remote power management function to reduce operation tasks
High definition supported DVI external display output
A wide range of power supplies (10.8 to 31.2VDC) supported
Major types of peripherals are supported with rich interfaces

*
For details about an extended warranty, please contact us.

Technical Column：Industrial Touch Panel Technology

Ordering Information

Replacement Product

Model	Definition
Panel PC PT-M07WA Touch Screen PC / Panel Mountable / 7-inch LCD resistive touch panel / Atom x6425E (Elkhart Lake) / DC Power Supply PT-M07WA-310	For details, please see datasheets and manuals.

Ordering Information

Model	Description	Certification
PT-M07WA-120-J103NA [Limited Stock]	[End of Repair Service : 19 August, 2030] 7-inch Panel mount Resistive-film analog Touch Panel Without OS, (Memory 4GB without Storage)
PT-M07WA-120-J103L07W16 [Limited Stock]	[End of Repair Service : 19 August, 2030] Atom E3845 / 4GB ECC RAM / CFast 128GB TLC(Support Power Failure Protection) / Win10 IoT LTSB 2016

※
These are built-to-order products. Contact CONTEC to request an evaluation device
※
Products installed with Windows 10 or 7 are also available. Contact CONTEC for more information.

Options

Storage

Item	Item Name
CFS-128GBTP-A	1.0-inch 128GB SATA CFast Card (TLC)

* For details about an extended warranty, please contact us.
