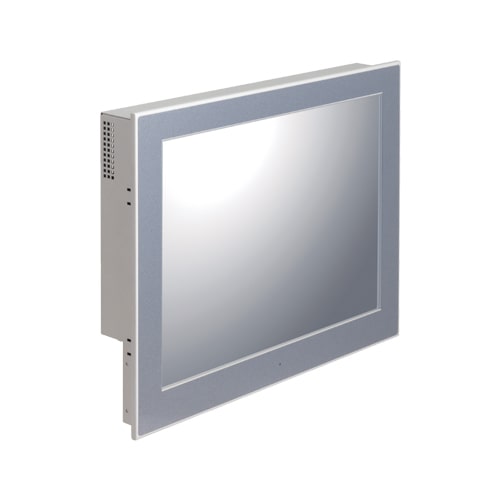

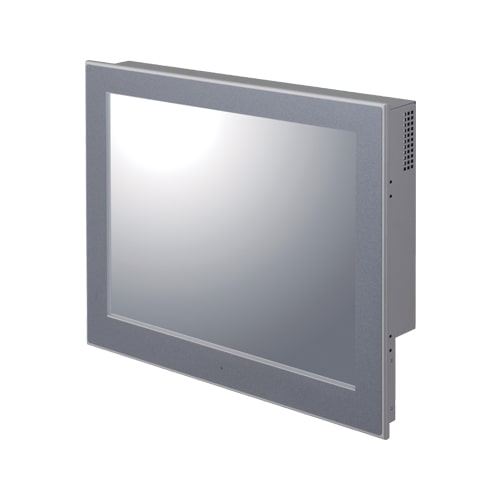

PT-M15SA-210 PT-M15SA - Touch Screen PC / Panel Mountable / 15-inch LCD, with resistive touch panel / Atom x5 E3940 (Apollo Lake SoC) / DC Power Supply

Standard Warranty3 yr
Extended WarrantyAvailable

Contributing to reduction of running cost and promotion of energy efficiency
Fan-less design reduces maintenance work
Adopting a 5-wire resistive film touch-screen holds high durability
"Power failure protection system" features power-off without OS shutdown
High-security design contributes to a highly reliable system
CONTEC-customized BIOS provides useful utility

*
For details about an extended warranty, please contact us.

Technical Column：Industrial Touch Panel Technology

Similar Model

12.1-inch LCD model

Specifications

Mechanical Design

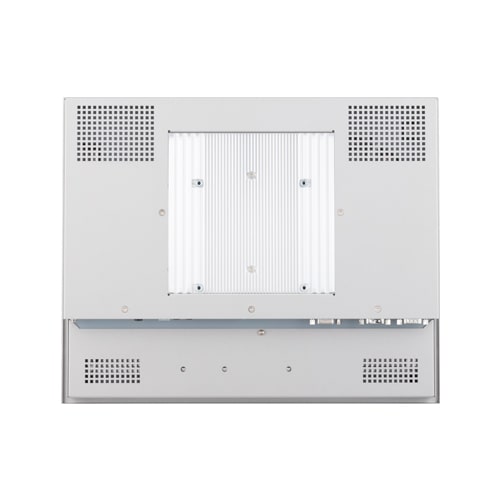

Mounting	Panel Mount; VESA 100 x 100

Software Support

Supported OS	Windows 10 IoT Enterprise 2019 LTSC 64-bit

Core System

Processor	Atom x5-E3940
CPU Generation (Development code)	Apollo Lake
CPU socket	-
Memory	8GB
RAS	Hardware monitor (Fan speed / Temperature / Voltage); Watchdog timer
GPU	-
AI Performance	-
Security	TCG TPM 2.0; Secure Boot USB Key

Touch Screen

LCD size	15-inch
LCD resolution	1024 x 768 (XGA)
Touch panel resolution	1024 x 768
Detection method	Analog resistive touch

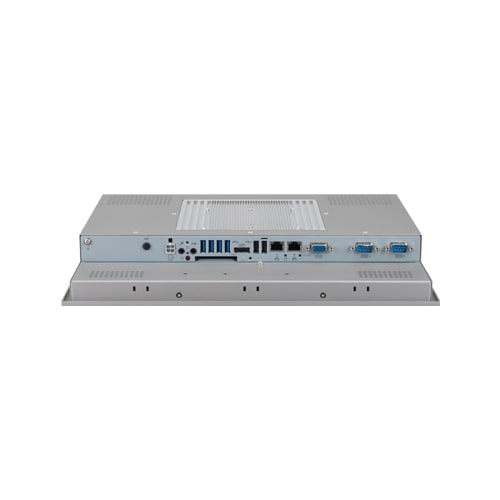

Interface

Video	1x DisplayPort; 1x Analog RGB
LAN	2x 1000BASE-T
Wireless	-
Audio	1x Line out; 1x Mic-in
I/O	4x USB3.2 Gen1 (USB3.0); 2x USB2.0
Memory card	1x M.2 2242; 1x CFast slot

Expansion Slot

Expansion bus	-
Drive bay	-

Power

Input voltage	12 to 24VDC

Environment

Operating temperature	-20 to 65°C (-4 to 149°F) with 0.7m/s airflow, -20 to 55°C (-4 to 131°F) without airflow (At maximum load); -20 to 70°C (-4 to 158°F) with 0.7m/s airflow, -20 to 60°C (-4 to 140°F) without airflow (During load derating)
Storage temperature	-20 to 70°C (-4 to 158°F)
Standards & Certifications	CE; FCC Class A; UKCA; VCCI Class A
