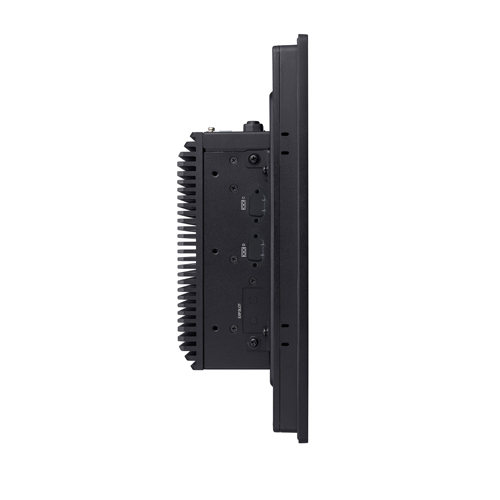

PT-M15SB-4600-G PT-M15SB - Touch Screen PC / Panel Mountable / 15-inch Projective Capacitive / 13th Gen (Raptor Lake-S) / DC Power Supply

• Overview / Features
• Specifications
• Ordering Information
• Support / Downloads

Overview / Features

• High Performance Processing

  • Supports Intel® 13th Gen LGA-1700 CPU with Intel® R680E chipset and DDR5-4800 memory (up to 16GB).Powerful computing core to handle smart factory and automation tasks with ease.
• Multi-Display Support

  • Flexible display output to support monitoring and HMI multitasking. Dual display support: DisplayPort (up to 4096x2304) and DVI-D/VGA (up to 1920x1200)
• Advanced Expansion & Storage

  • Triple M.2 slots: Key E (Wi-Fi), Key B (4G/5G with SIM), Key M (NVMe SSD with Intel RST) Seamless wireless connectivity and high-speed storage for edge computing demands.
• Rich Connectivity Options

  • Dual 2.5GbE LAN (Intel® i226IT), 4x USB 3.2 Gen2, 2x USB 2.0, multiple serial ports, GPIO Comprehensive I/O to easily integrate with a wide range of industrial devices and sensors.
• Enhanced Reliability & Security

  • TPM 2.0, hardware monitoring, watchdog timer, wide voltage input (12–24V DC ±10%) Built-in protection and stability for nonstop performance in mission-critical operations.
• IP65 Front Bezel

  • The aluminum front bezel is waterproof and dust-proof, making it suitable for harsh industrial conditions. Rugged design that stands up to the toughest factory environments.
