PT-M15WB-4600-G PT-M15WB - Touch Screen PC / Panel Mountable / 15-inch Projected Capacitive / 13th Gen (Raptor Lake-S) / DC Power Supply

• Overview / Features
• Specifications
• Ordering Information
• Downloads / Support

Overview / Features

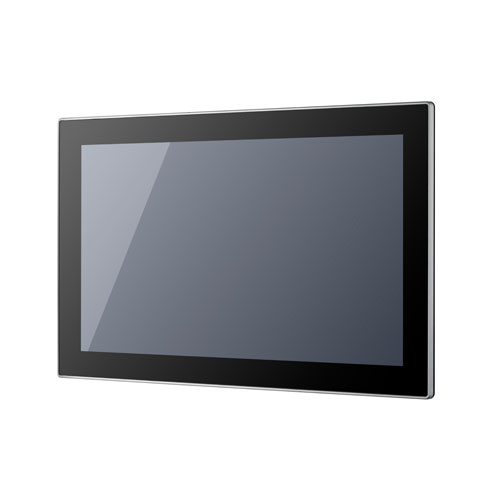

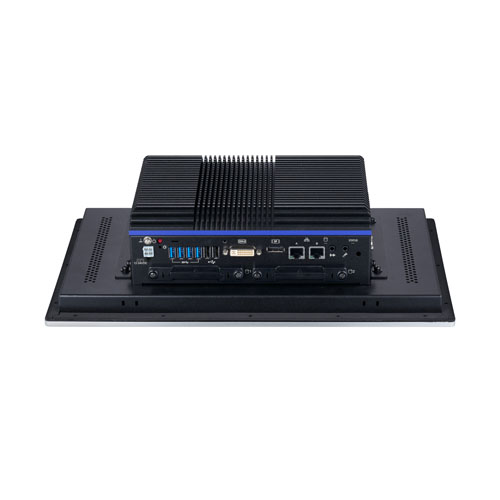

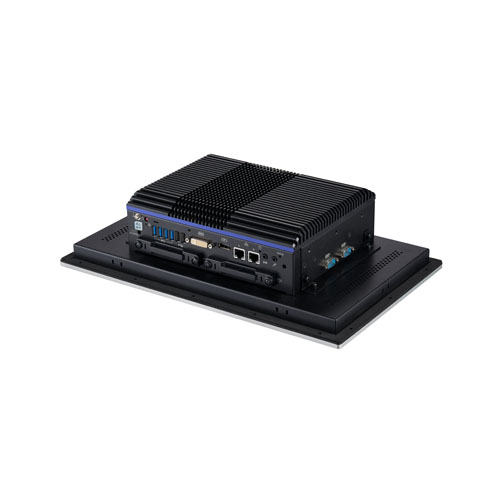

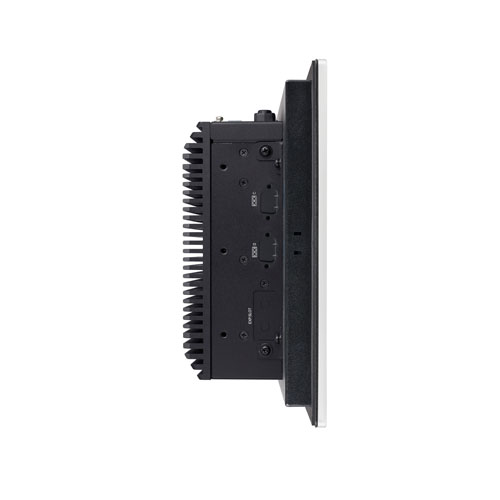

The PT-M15WB-4600 series is a Fanless computer specifically designed for embedded applications. It is equipped with a 13th Gen Intel^® Core™ processor and features a 15-inch touch panel with IP65-rated waterproof and dustproof protection, making it suitable for various environments. The product includes DisplayPort and DVI-I display interfaces, four USB 3.2 Gen2 Type-A ports, and two 2.5GbE LAN ports. Additionally, it has a built-in M.2 Key E slot for wireless LAN and Bluetooth connectivity. The product features an I/O panel with dual 2.5-inch storage drive trays, making maintenance extremely convenient. Its external cable fastening design enhances reliability. Additionally, the customized BIOS provided by CONTEC offers support at the BIOS level.

• 15.6" TFT LCD with Projected Capacitive touch control.
• With Intel^® R680E Chipset to support Intel^® 13th Gen. LGA-1700 CPU (TDP 35W)
• Multi-display supported: 1x Display port + 1x DVI-I(DVI-D+VGA).
• Fanless design with removable 2.5” storage drive bay
• Dual 2.5 GbE RJ-45 ports, 4x USB 3.2 ports, 2x USB 2.0 ports and 4x COM ports.
• IP65 Front Panel Protection.
