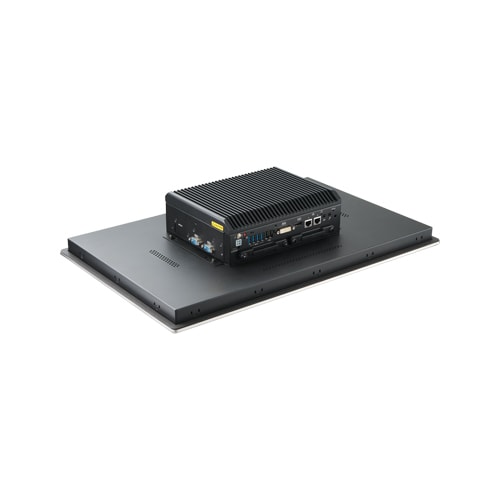

PT-M21WB-2500-G PT-M21WB-2500-G - Touch Screen PC / Panel Mountable / 21.5-inch LCD with PCAP touch panel / Intel 9th Gen. Core (Coffee Lake R + C246) / DC Power Supply

  • Standard Warranty1 yr
  • モーダルで開く
  • モーダルで開く
  • モーダルで開く
  • Compatible with Intel® 9th Gen. Coffee Lake-Refresh Platform
  • IP66 + Stainless Front Panel Design
  • CPU Built-in High-Performance Graphics
  • Adopt Removable Storage
  • Extend Peripherals Freely Rich Interface

Ordering Information

Ordering Information

Model Description Certification
PT-M21WB-2500-G604NA 21.5 inch PCAP Touch Panel PC with Intel® Core™ i7-9700TE, DDR4 8G Memory
  • CE marking
  • FCC compliant
PT-M21WB-2500-G504NA 21.5 inch PCAP Touch Panel PC with Intel® Core™ i5-9500TE, DDR4 8G Memory
  • CE marking
  • FCC compliant
PT-M21WB-2500-G404NA 21.5 inch PCAP Touch Panel PC with Intel® Core™ i3-9100TE, DDR4 8G Memory
  • CE marking
  • FCC compliant
PT-M21WB-2500-G204NA 21.5 inch PCAP Touch Panel PC with Intel® Celeron® G4900T, DDR4 8G Memory
  • CE marking
  • FCC compliant

Options

Memory
  • ８GB
  • 16GB
  • 32GB
Storage *1*2
  • 1 or 2x 500GB to 2TB 2.5" HDD
  • 1 or 2x 32GB to 2TB 2.5" SSD
  • 1x 16GB to 256GB M.2 SSD key M2242
OS
  • Windows 10 IoT Enterprise 2019 LTSC (64-bit)
Power Supply
  • Input: 100-240VAC, Output: 24VDC 5A
Other
  • VESA Mount Fitting (Includes 6 VESA mount screws)

*1 There are two removable storage bays.
*2 If needs to configure the RAID function, selects two same devices for the storage bays.
