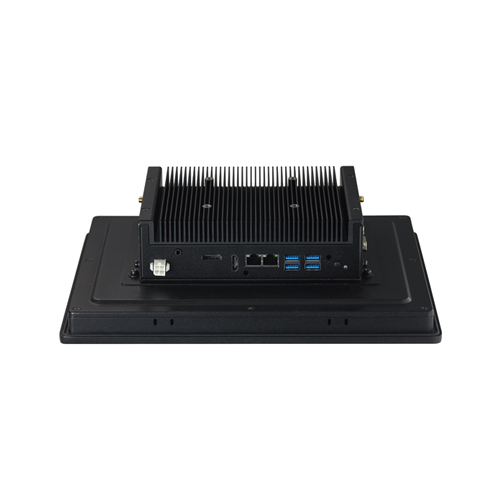

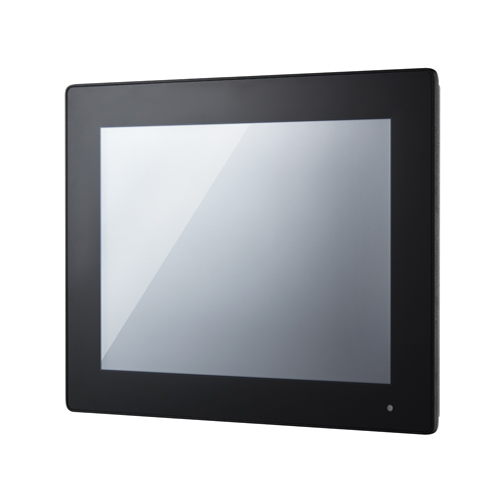

PT-S2000LX PT-S2000LX - Touch Screen PC / Panel Mountable / 12-inch LCD / Intel 6th Skylake Platform / 1x 2.5-inch drive bay / DC Power Supply

  • Standard Warranty1 yr
  • Intel Skylake SoC base platform
  • Silent fanless design with thinner chassis
  • IP65 front panel for waterproof & dustproof applications
  • 12.1" LCD with long-life touch screen and LED backlight for power saving
  • Support 5-wire resistive
  • Dual LAN, 2x COM, 4x USB 3.0, 1x GPIO, 1x HDMI, 1x DP and other rich expansion interfaces

Specifications

Mechanical Design

Mounting Panel Mount

Software Support

Supported OS Windows 10; Windows 7

Core System

Processor Core i5-6300U; Celeron 3955U
CPU Generation (Development code) 6th Gen. (Skylake-S)
CPU socket -
Memory 8GB
RAS Hardware monitor (Temperature / Voltage); Watchdog timer
GPU -
AI Performance -
Security -

Touch Screen

LCD size 12.1-inch
LCD resolution 1024 x 768 (XGA)
Touch panel resolution -
Detection method Analog resistive touch

Interface

Video 1x DisplayPort; 1x HDMI
LAN 2x 1000BASE-T
Wireless -
Audio 1x Line out; 1x Mic-in
I/O 4x USB3.2 Gen1 (USB3.0); 1x RS-232C; 1x RS-232C/422A/485
Memory card 1x mSATA

Expansion Slot

Expansion bus -
Drive bay 1x 2.5-inch shadow bay (SATA)

Power

Input voltage 12 to 24VDC

Environment

Operating temperature 0 to 50°C (32 to 122°F) (w/ 0.7m/s Air flow, Extended temp. SSD); 0 to 40°C (32 to 104°F) (w/ 0.7m/s Air flow w/ standard temp. SSD)
Storage temperature -10 to 60°C (14 to 140°F)
Standards & Certifications CE; FCC Class A
