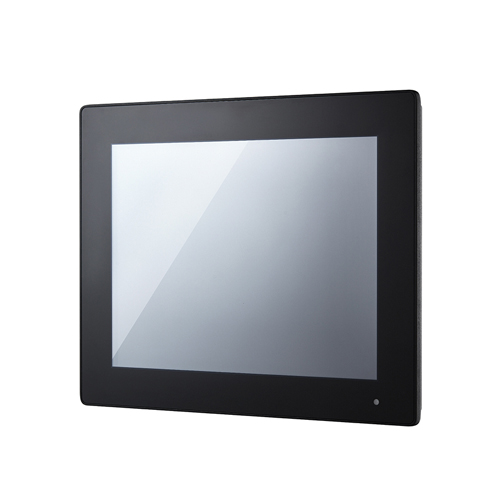

PT-S959SDLXC PT-S959SDLXC - Touch Screen PC / Panel Mountable / 12.1-inch LCD / Atom E3845 (BayTrail SoC) / 1x 2.5-inch drive bay / DC Power Supply

  • Standard Warranty1 yr
  • Intel Baytrail SoC base platform
  • Silent fanless design with thinner chassis
  • IP65 front panel for water-proof applications
  • 12.1" LCD with long-life touch screen and LED backlight for power saving
  • Support Projected Capacitive (PCAP) touch panel
  • Dual LAN, 4x COM, 7x USB, 1x DIO and other rich expansion interface. Easy replacement of the storage device 2.5-inch SATA drive bay

Similar Models


Mechanical Design

Mounting Panel Mount

Software Support

Supported OS Windows 10; Windows 8.1; Windows 7

Core System

Processor Atom E3845
CPU Generation (Development code) Bay Trail
CPU socket -
Memory up to 8GB
RAS Watchdog timer
AI Performance -
Security -

Touch Screen

LCD size 12.1-inch
LCD resolution 1024 x 768 (XGA)
Touch panel resolution -
Detection method Projected capacitive touch (PCAP)


Video 1x DVI-I
LAN 2x 1000BASE-T
Wireless -
Audio 1x Line out; 1x Mic-in
I/O 1x USB3.2 Gen1 (USB3.0); 6x USB2.0; 3x RS-232C; 1x RS-232C/422A/485
Memory card 2x CFast slots; 1x CFast slot

Expansion Slot

Expansion bus -
Drive bay 1x 2.5-inch bay (SATA)


Input voltage 12 to 24VDC


Operating temperature 0 to 50°C (32 to 122°F) (w/ Extended temp. HDD/SDD); 0 to 40°C (32 to 104°F), (w/ HDD)
Storage temperature -10 to 60°C (14 to 140°F)
Standards & Certifications CE; FCC Class A; VCCI Class A
