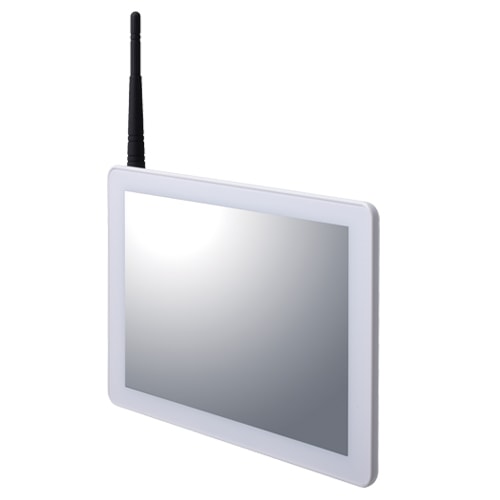

PT-V10WB-210R PT-V10WB-210R - Touch Screen PC / VESA Mountable / 10.1-inch LCD with PCAP touch panel fingerprint-resistant, oil-repelling coating / Atom E3940 (Apollo Lake SoC) / Wireless LAN Bluetooth / DC Power Supply

  • Standard Warranty3 yr
  • Extended WarrantyAvailable
  • no-imageモーダルで開く
  • モーダルで開く
  • モーダルで開く
  • モーダルで開く
  • モーダルで開く
  • Capacitive (PCAP) Touch panel with fingerprint-resistant, oil-repelling coating
  • The compact design features flexibility in installation
  • Both DC input connectors, a jack type and a terminal block type are quipped with the unit for optimized use
  • VESA standard support
  • "Power failure protection system" features power-off without OS shutdown
  • Wireless connections to various devices via wireless LAN and Bluetooth
  • *
    For details about an extended warranty, please contact us.

Similar Model

Specifications

Mechanical Design

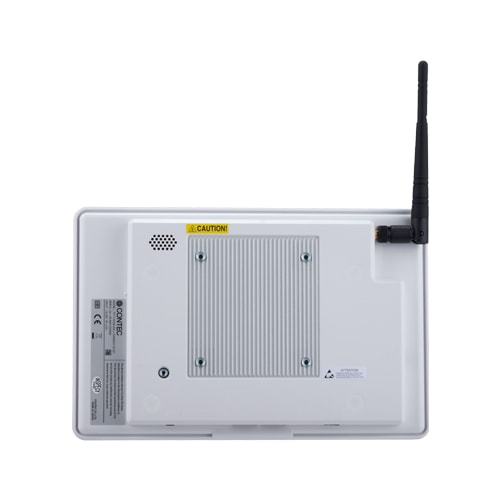

Mounting VESA 75 x 75

Software Support

Supported OS Windows 10 IoT Enterprise 2019 LTSC 64-bit

Core System

CPU Generation (Development code) Apollo Lake
Processor Atom x5-E3940
CPU socket -
Memory 8GB
RAS Hardware monitor (Temperature / Voltage); Remote power-on; Watchdog timer
GPU -
AI Performance -
Security TCG TPM 2.0; NIST SP800-147 (BIOS Write Protect); Secure Boot USB Key

Touch Screen

LCD size 10.1-inch
LCD resolution 1280 x 800 (WXGA)
Touch panel resolution 1280ｘ800（WXGA）
Detection method Projected capacitive touch (PCAP)

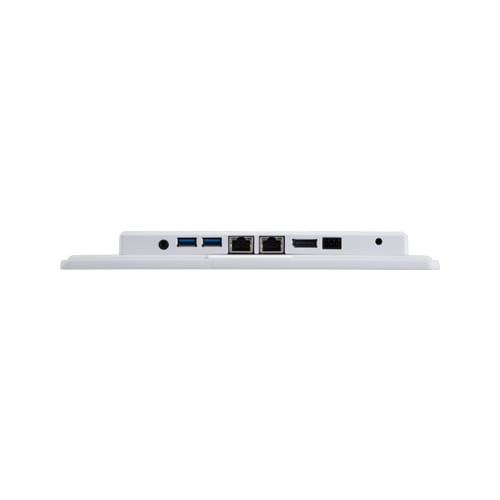

Interface

Video 1x DisplayPort
LAN 2x 1000BASE-T
Wireless Wireless LAN IEEE802.11ac/a/b/g/n; Bluetooth 4.2
Audio 1x Line out; 1x Monaural speaker
I/O 3x USB3.2 Gen1 (USB3.0); 1x USB2.0
Memory card 1x M.2 2242

Expansion Slot

Expansion bus -
Drive bay -

Power

Input voltage 12 to 24VDC

Environment

Operating temperature 0 to 40°C (32 to 104°F)
Storage temperature -10 to 60°C (14 to 140°F)
Standards & Certifications FCC Class A; TELEC; VCCI Class A
