Analog I/O & Multifunctional Devices

Choose from a large selection of products for your wiring needs, from useful terminal blocks and a wide array of cables to extension modules including operation amplifiers for increased accuracy, filters, gain amplifiers, and sample-and-hold modules for synchronous sampling. Connection cables can be order-made to lengths of multiples of 10 cm.

Accessories and cables compatible with analog F Series products

Device >> Cable/Accessory

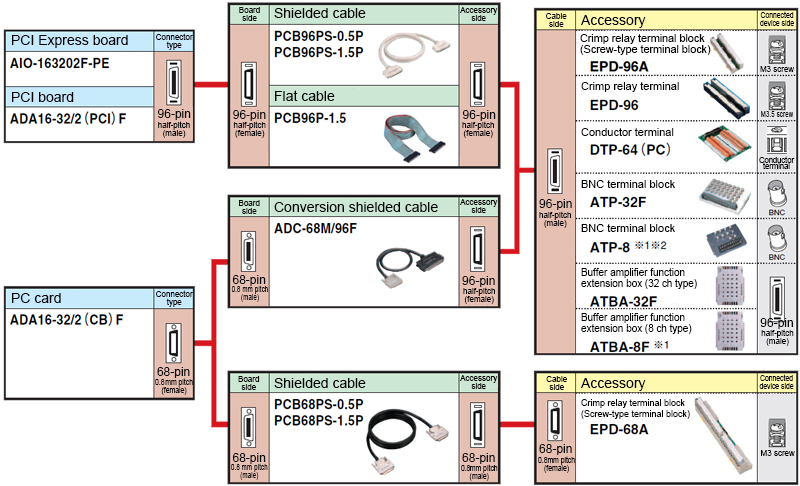

Cables and terminal blocks compatible with analog F Series products

  • *1:
    Maximum of 8 analog input channels available. *2 Able to use up to 4 digital inputs, 4 digital outputs and 1 counter I/O input
  • *2:
    Able to use up to 4 digital inputs, 4 digital outputs and 1 counter I/O input
  • *3:
    Please see page P-13 for the buffer amplifier boxes ATBA-32F and ATBA-8F.

Cables

Accessories: Terminal blocks and buffer amplifier function extension boxes (with operational amps)

Buffer Amp >> Cable/Accessory

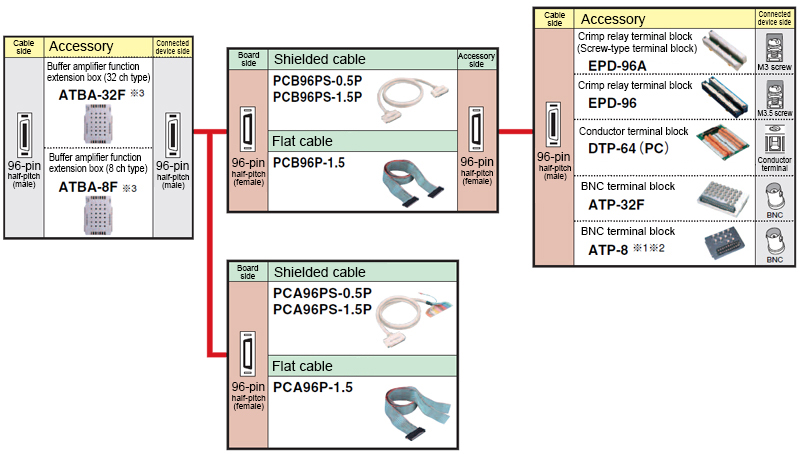

Buffer amps compatible with F Series products

  • *1:
    Maximum of 8 analog input channels available.
  • *2:
    Able to use up to 4 digital inputs, 4 digital outputs and 1 counter I/O input
  • *3:
    Optional AC adapter "POA200-20" is required.

Cables

Accessories: Terminal blocks

Accessories and cables compatible with analog L Series products

Device >> Cable/Accessory

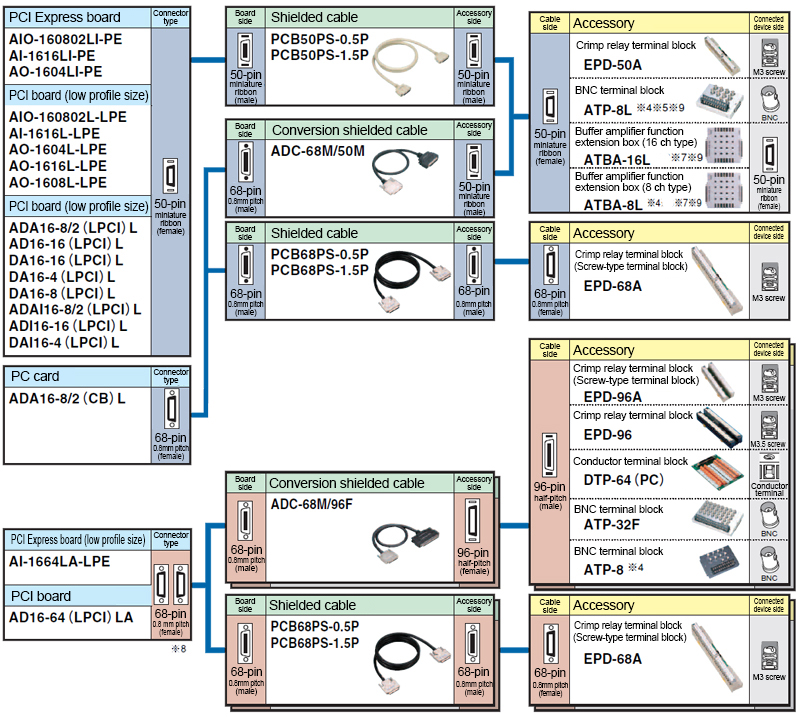

Cables and terminal blocks compatible with L Series products

  • *4:
    Maximum of 8 analog input channels available.
  • *5:
    Maximum of 2 analog output channels available.
  • *6:
    Please see page P-14 for the buffer amplifier boxes ATBA-16L and ATBA-8L.
  • *7:
    Cannot be used with AO-1604L-LPE, DA16-4(LPCI)L, or DAI16-4(LPCI)L
  • *9:
    Cannot be used with AO-1616L-LPE, AO-1608L-LPE, DA16-16(LPCI)L, or DA16-8(LPCI)L

Cables

Accessories: Terminal blocks and buffer amplifier function extension boxes (with operational amps)

Accessories and cables compatible with analog L Series products

Device >> Cable/Accessory

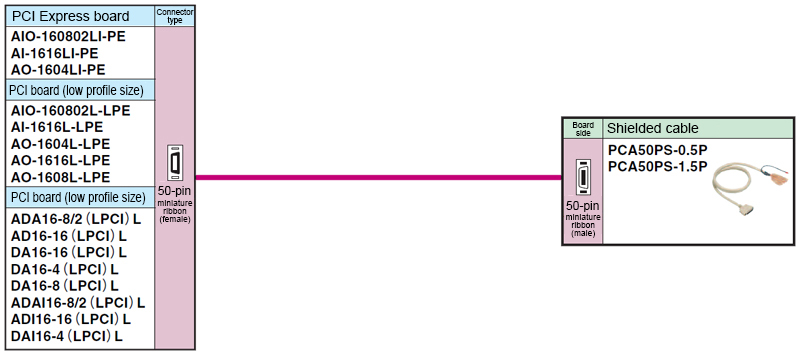

Cables and terminal blocks compatible with L Series products

  • *1
    Maximum of 8 analog input channels available.
  • *2
    Each connector needs cables and accessories.

Cables

Accessories: Terminal blocks and buffer amplifier function extension boxes (with operational amps)

Buffer Amp >> Cable/Accessory

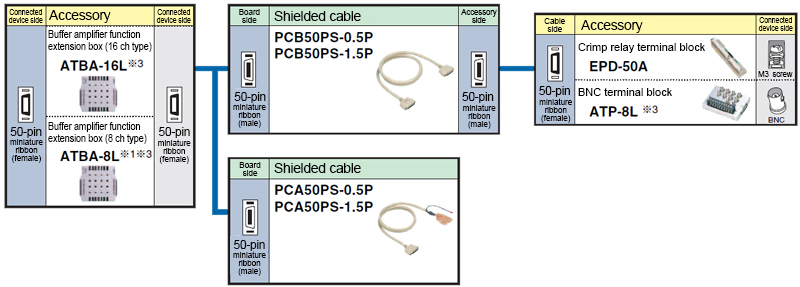

Buffer amps compatible with L Series products

  • *1:
    Maximum of 8 analog input channels available.
  • *3:
    Optional AC adapter "POA200-20" is required.

Cables

Accessories: Terminal blocks

Accessories and cables compatible with analog E Series products

Device >> Cable/Accessory

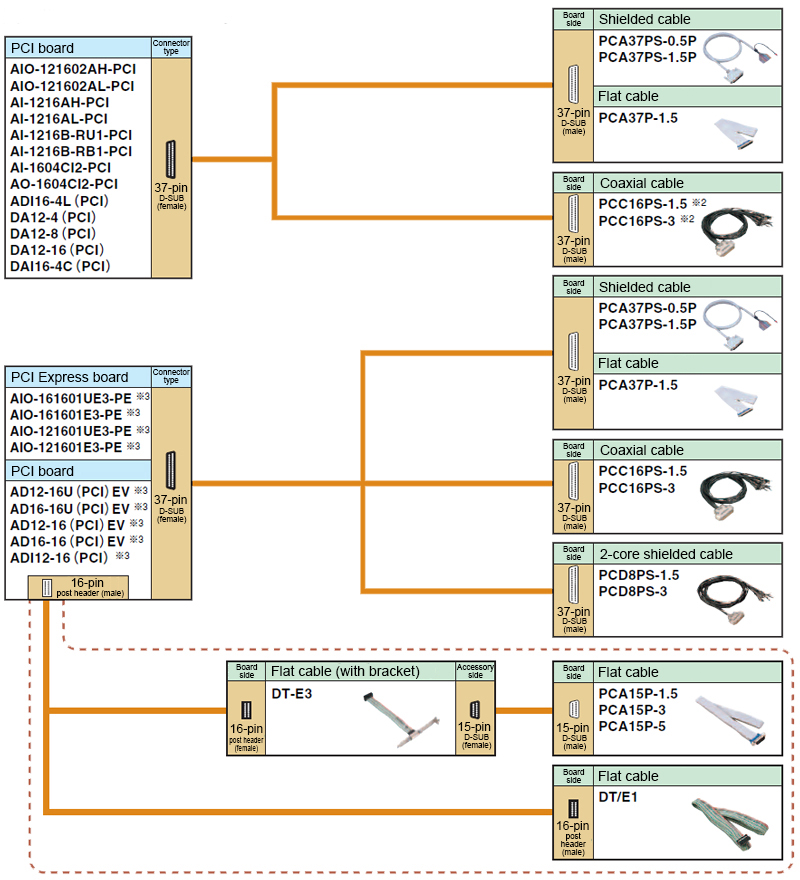

Cables and terminal blocks compatible with E Series products

  • *1:
    Analog input/output external interface provided through 37-pin D-SUB connector. Digital input/output provided through on-board 16-pin header connector.
  • *2:
    Please see page P-15 for the buffer amplifier box ATBA-16E.

Cables

Accessories: Terminal blocks, expansion accessories for sampling and filter functions, etc.

Buffer Amp >> Cable/Accessory

Buffer amps compatible with E Series products

  • *1:
    To connect with ADI12-16(PCI), optional AC adapter "POA200-20" is required.

Cables

Accessories: Terminal blocks, expansion accessories for sampling functions, etc.

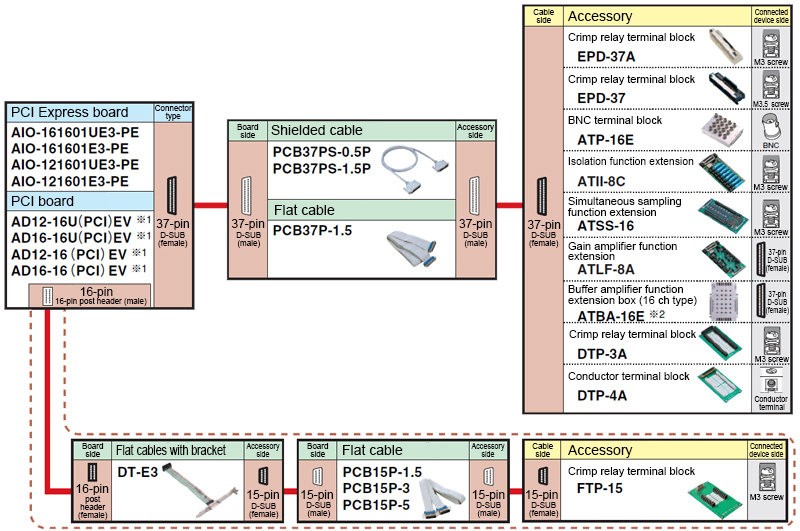

Accessories and cables compatible with analog 37-pin D-SUB Connector Type

Device >> Cable/Accessory

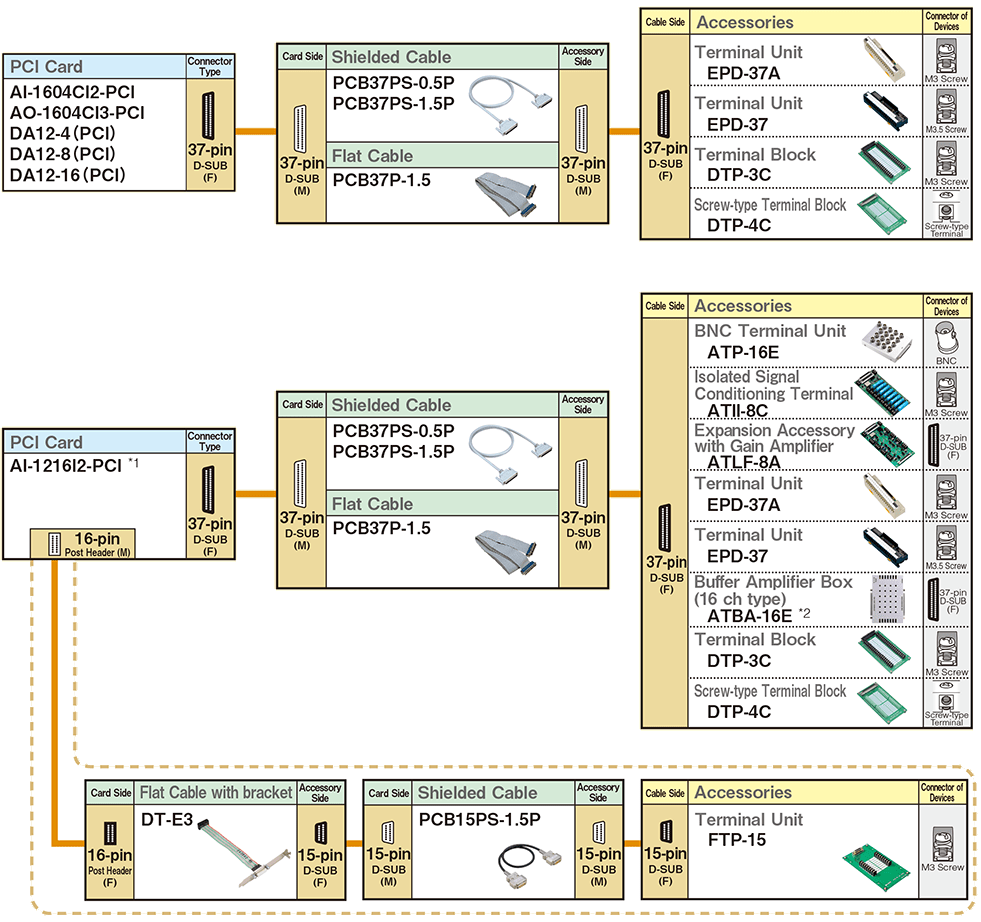

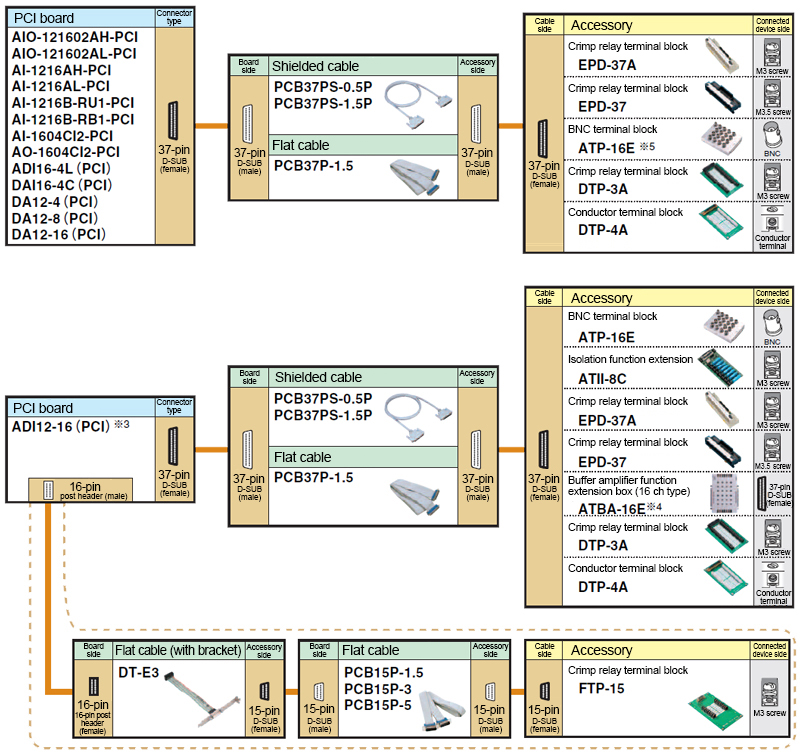

Cables and terminal blocks compatible with standard series products

  • *3:
    Analog input/output external interface provided through 37-pin D-SUB connector. Digital input/output provided through on-board 16-pin header connector.
  • *4:
    Please see page P-15 for the buffer amplifier box ATBA-16E. *5 Can be used only with DA12-4(PCI), DA12-8(PCI), and DA12-16(PCI)

Cables

Accessories: Terminal blocks, buffer amplifier function extension boxes (with operational amps), etc.

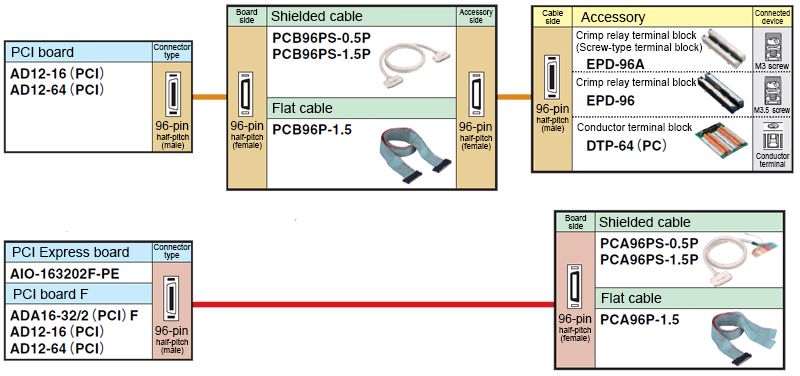

Accessories and cables compatible with analog 96-pin Half Pitch Connector Type

Device >> Cable/Accessory

Cables and accessories compatible with 96-pin half-pitch connectors

  • *1:
    Can be used only with AD12-16(PCI) and AD12-64(PCI)

Cables

Accessories: Terminal blocks

One-ended cables compatible with 96-pin 0.8 mm pitch connectors

Device >> Cable

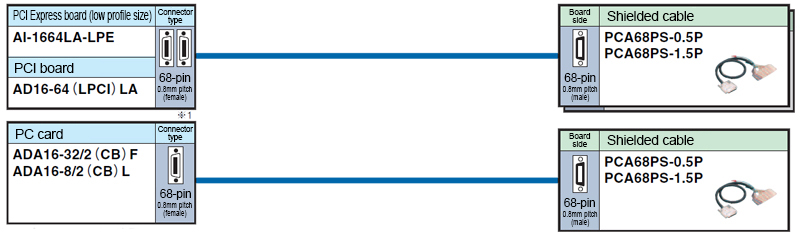

One-ended cables compatible with 68-pin 0.8 mm pitch connectors

Cables

One-ended cables compatible with 68-pin 0.8 mm pitch connectors

Device >> Cable

One-ended cables compatible with 68-pin 0.8 mm pitch connectors

Cables

One-ended cables compatible with 50-pin miniature ribbon connectors

Device >> Cable

One-ended cables compatible with 50-pin miniature ribbon connectors

Cables

One-ended cables compatible with 37-pin D-SUB connectors

Device >> Cable

One-ended cables compatible with 37-pin D-SUB connectors

  • *2:
    Can be used only with DA12-4(PCI), DA12-8(PCI), and DA12-16(PCI)
  • *3:
    Analog input/output external interface provided through 37-pin D-SUB connector. Digital input/output provided through on-board 16-pin header connector.

Cables

To PageTop
