Conversion cables are available for migrating the entire accessory configurations

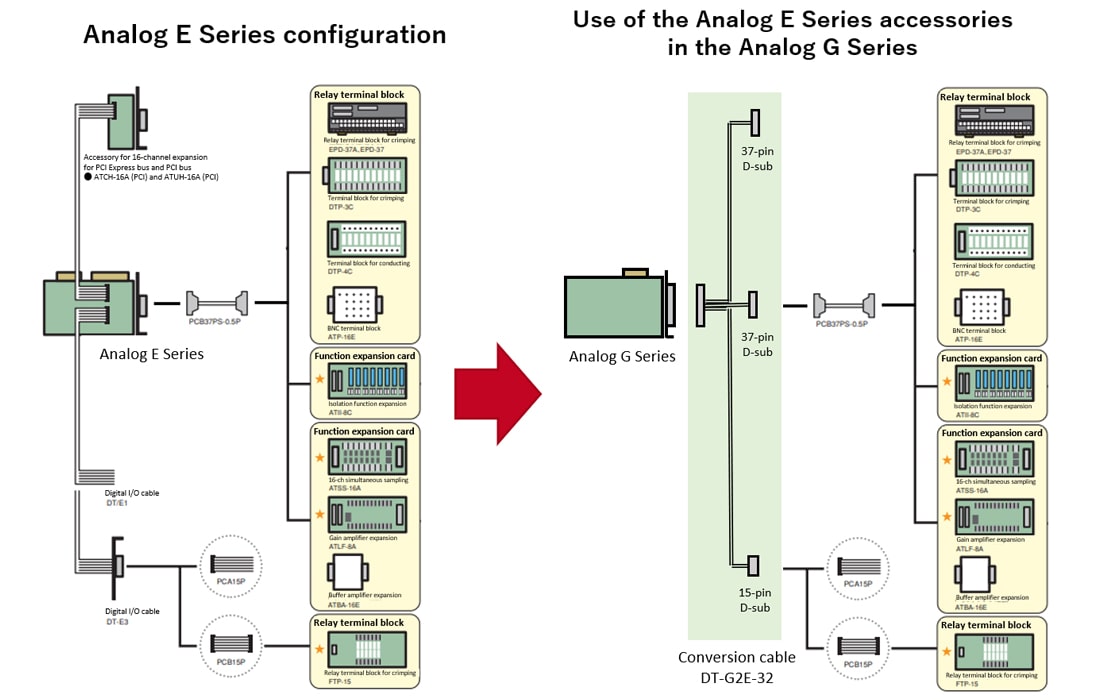

Conversion cables are available for converting from the Analog G Series external connection connector (96-pin half-pitch connector) to the Analog E Series connector (37-pin D-sub connector). These conversion cables allow migration to the Analog G Series without changing the accessory configuration of the Analog E Series.

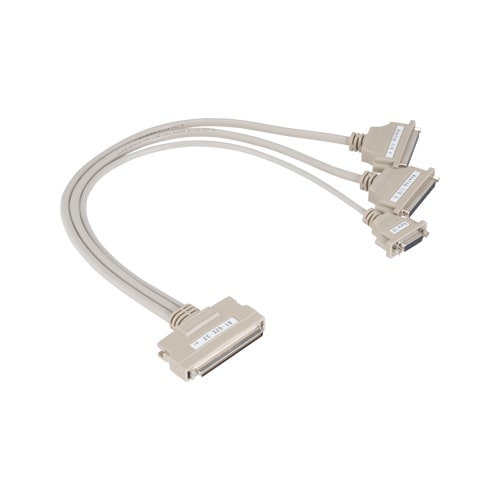

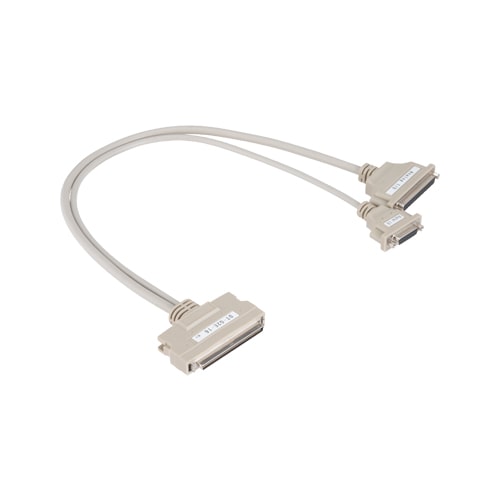

Conversion cables

  • *
    When using a conversion cable (DT-G2E-16 or DT-G2E-32), the number of analog outputs, control signals, digital I/Os, counters, and other parameters will be limited. For details, refer to the manual for the conversion cable.

API function capability for completing migration with minimal labor

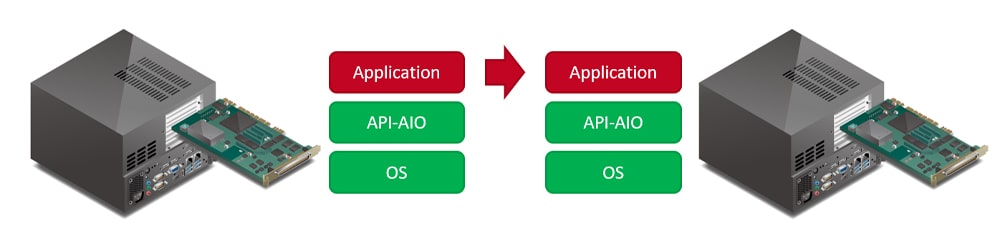

The API functions of the Analog G Series are compatible with those of the previous Analog F/E Series. Applications that were created with the Analog F/E Series can be used without modification by simply changing the settings. In this way, migration can be completed with minimal labor by using existing software assets.

Specifications comparison table

Compared to the previous Analog E Series, the analog I/Os, digital I/Os, and counters all have more channels. Bus master transfers and synchronous buses between cards are also supported for enabling faster applications.

AIO-163202UG-PE and E series (16 bits/1 MSPS)

AIO-163202UG-PE AIO-161601UE3-PE AD16-16U(PCI)EV
Number of analog input channels 32 (single-ended input), 16 (differential input) 16 (single-ended input), 8 (differential input) 16 (single-ended input), 8 (differential input)
Analog input buffer memory 128M Word 32M Word (16M data) 32M Word (16M data)
Number of analog output channels 2ch 1ch 1ch
Number of digital inputs LVTTL x 8 TTL x 4 TTL x 4
Number of digital outputs LVTTL x 8 TTL x 4 TTL x 4
Counter channels 2ch 1ch 1ch
Bus master transfers Built-in - -
Synchronous bus Built-in - -
Bus specifications PCI Express PCI Express PCI

AIO-163202G-PE and E Series (16 bits/100 kSPS)

AIO-163202G-PE AIO-161601E3-PE AD16-16(PCI)EV
Number of analog input channels 32 (single-ended input), 16 (differential input) 16 (single-ended input), 8 (differential input) 16 (single-ended input), 8 (differential input)
Analog input buffer memory 128M Word 32M Word (16M data) 32M Word (16M data)
Number of analog output channels 2ch 1ch 1ch
Number of digital inputs LVTTL x 8 TTL x 4 TTL x 4
Number of digital outputs LVTTL x 8 TTL x 4 TTL x 4
Counter channels 2ch 1ch 1ch
Bus master transfers Built-in - -
Synchronous bus Built-in - -
Bus specifications PCI Express PCI Express PCI

AIO-123202UG-PE and E Series (12 bits/1 MSPS)

AIO-123202UG-PE AIO-121601UE3-PE AD12-16U(PCI)EV
Number of analog input channels 32 (single-ended input), 16 (differential input) 16 (single-ended input), 8 (differential input) 16 (single-ended input), 8 (differential input)
Analog input buffer memory 128M Word 32M Word (16M data) 32M Word (16M data)
Number of analog output channels 2ch 1ch 1ch
Number of digital inputs LVTTL x 8 TTL x 4 TTL x 4
Number of digital outputs LVTTL x 8 TTL x 4 TTL x 4
Counter channels 2ch 1ch 1ch
Bus master transfers Built-in - -
Synchronous bus Built-in - -
Bus specifications PCI Express PCI Express PCI

AIO-123202G-PE and E Series (12 bits/100 kSPS)

AIO-123202G-PE AIO-121601E3-PE AD12-16(PCI)EV
Number of analog input channels 32 (single-ended input), 16 (differential input) 16 (single-ended input), 8 (differential input) 16 (single-ended input), 8 (differential input)
Analog input buffer memory 128M Word 32M Word (16M data) 32M Word (16M data)
Number of analog output channels 2ch 1ch 1ch
Number of digital inputs LVTTL x 8 TTL x 4 TTL x 4
Number of digital outputs LVTTL x 8 TTL x 4 TTL x 4
Counter channels 2ch 1ch 1ch
Bus master transfers Built-in - -
Synchronous bus Built-in - -
Bus specifications PCI Express PCI Express PCI
