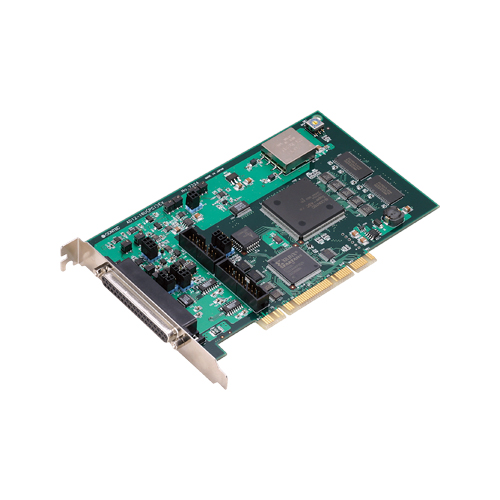

AD12-16(PCI)EV Analog I/O PCI Card / 16ch AI(12bit 100ks/s) / 1ch AO / 3ch Counter - Multifunction DAQ E Series

• Overview / Features
• Specifications
• Ordering Information
• Support / Downloads

Overview / Features

It is Interface board of PCI bus conformity which inputs an analog signal, and to do conversion (AD conversion) for digital data. It puts a buffer memory of large-capacity 16M data on analog input department, and sampling it can perform a background in various trigger conditions. It is equipped with one point of analog output, T TL digital input and output for each 4 points. Attachment Drivers for Windows/Linux. In addition, can support data collection that using a data logger soft[C-LOGGER(Attachment)] and no programing, by plug in of an exclusive library (a free download) and can supports MATLAB and LabVIEW too.

• Resolution : 12-bit, combination speed : 10µsec/ch

  • This product is the type that performs A-D conversion at a conversion speed of 10µsec/ch and a resolution of 12-bit.
    The product has analog input 16ch, analog output 1ch, digital input/output (TTL level: four each), and a counter (32-bit, TTL level 1ch). In addition, the analog input can be set to single-end input 16ch or differential input 8ch, while the counter is commonly used as the digital input/output.
• Equipped with high-capacity buffer memory for 16M data and a variety of sampling control functions

  • FIFO or RING buffer memory for 16M data, allowing sampling to be performed as a background task independent of the processing power of the PC.
    Capable of starting and stopping sampling not only by software commands but depending on the strength of an analog signal (via conversion data comparison) or by detection of a TTL level signal (external trigger).
• Sixteen single-ended channels or eight differential channels (Analog input function)

  • These boards allow either single-ended or differential input mode that is selected with on-board jumpers. The order of channels subject to signal conversion can be preset in the dedicated register. Using an optional unit, a board can increase the maximum number of input channels (up to 32 channels) and perform simultaneous sampling.
• Mixed on-board channels for analog output and digital I/O

  • One channel for analog output, four channels for TTL level digital input, and four channels for TTL level digital output mixed on the board.
• Compact PCI short-size board with a wealth of advanced functions Abundant optional units

  • Providing a variety of options available for extending the functions, including buffer amplifier, simultaneous sampling, insulation & current/thermocouple input, low pass filter, and cables.
• Software-based calibration function

  • Calibration of analog input/output can be all performed by software. Apart from the adjustment information prepared before shipment, additional adjustment information can be stored according to the use environment.
