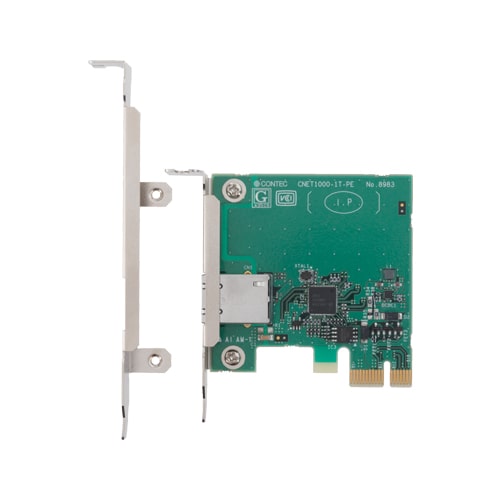

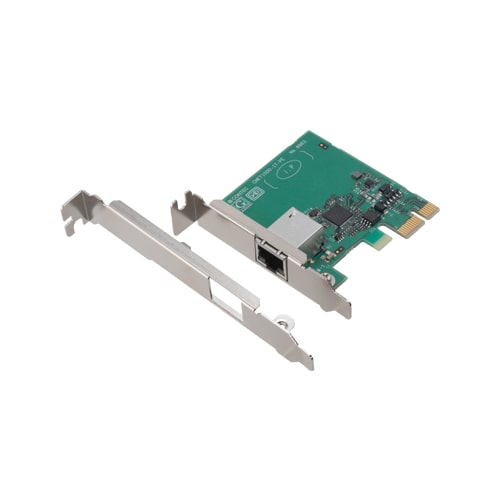

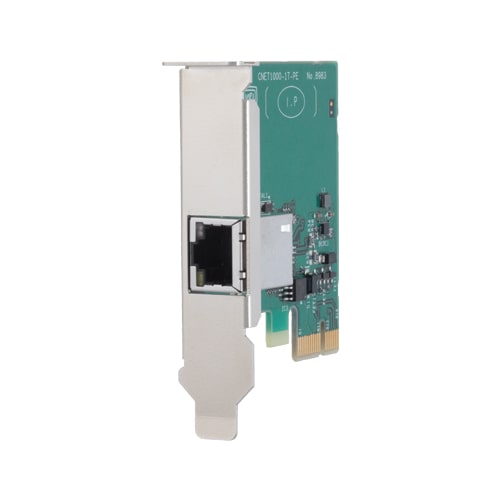

CNET1000-1T-PE PCI Express Compliant Gigabit LAN Card

• Overview / Features
• Specifications
• Ordering Information
• Support / Downloads

Overview / Features

This product is a PCI Express bus compatible board that compliant with IEEE802.3ab (1000BASE-T) / IEEE802.3u (100BASE-TX) / IEEE802.3 (10BASE-T) standards. Compatible with Low Profile size, and standard size by replacing with the included bracket. Windows/Linux drivers are available.

• Low Profile size compliant with IEEE802.3ab (1000BASE-T)

  • It has one IEEE802.3ab (1000BASE-T) port and has a board size (65.3mm x 68.9mm) that supports Low Profile size.
• Compliant with Low Profile size/Standard size slots (bracket included)

  • Brackets compliant with Low Profile size/Standard size slots are included. When installing in a standard size slot, replace it with a standard size bracket.
• Operated in the temperature between -40 °C and +75 °C ( -40 °F and +167 °F).

  • Operated in the temperature between -40 °C and +75 °C ( -40 °F and +167 °F).
• Windows/Linux compatible driver

  • Download from the CONTEC website.
