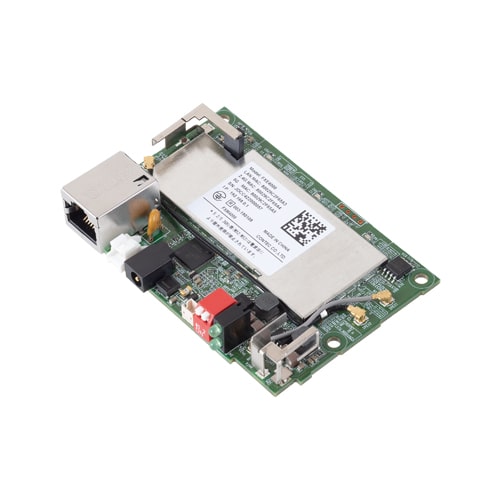

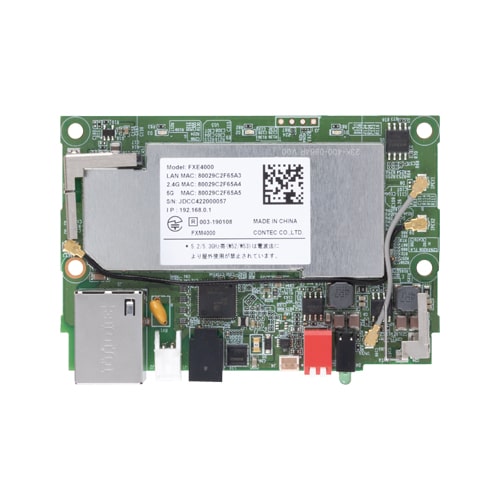

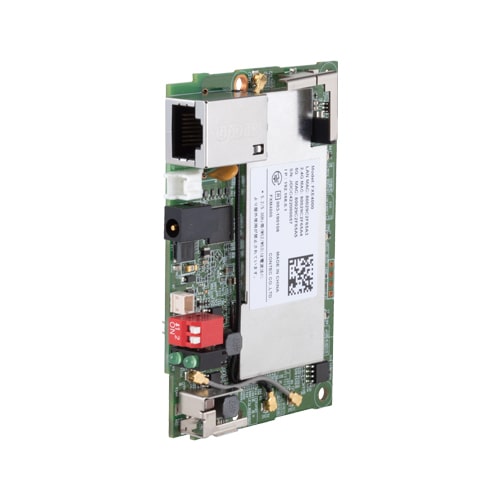

FXE4000 Embedded Wireless LAN Board (Master/Slave Station/Repeater)

Discontinued

Standard Warranty1 yr
Extended WarrantyAvailable

End of Repair Service: 2024/10/14

Check a compatible replacement

* The end of repair date may change depending on the situation.

Supports IEEE802.11ac/n/a(W52/W53/W56)/b/g standards
Power supplied either from AC adapter or DC power supply connector
Works as an access point, a station, or a repeater
Equipped with original encryption technology WSL that can be used with WPA3/WPA2 / WPA and WEP
Equipped with VLAN and Virtual AP function
Optional antenna to meet various demands

*
For details about an extended warranty, please contact us.

Ordering Information

Replacement Product

Model	Definition
Embedded Wireless LAN Board (Master/Slave Station/Repeater) FXE3000	For details, please see datasheets and manuals.

Ordering Information

Model	Description	Certification
FXE4000 [Limited Stock]	[End of Repair Service : 14 October, 2024] IEEE802.11ac/n/a/b/g Embedded Wireless LAN access point board (Master/Slave Station/Repeater, Japan only)

Options

Cable

Item	Item Name
FX-ANT-C05	Coaxial cable (0.5m) for FLEXLAN series
FX-ANT-C12	12m Coaxial cable for FX-ANT-A2/A3/A5
FX-ANT-C2	Coaxial cable (0.5m) for FLEXLAN series
FX-ANT-C25H	Coaxial cable 25m for FX-ANT-A2/A3/A5
FX-ANT-CEX3	SMA coax conversion cable(0.20m)

Power Supply / AC Adapter

Item	Item Name
FX-AC053	AC adapter for FLEXLAN series product (5V) (Japan only)

Antenna

Item	Item Name
FX-ANT-A1	Option Antenna for FLEXLAN
FX-ANT-A2	Option Antenna for FLEXLAN
FX-ANT-A3	Option Antenna for FLEXLAN
FX-ANT-A5	Option Antenna for FLEXLAN
FX-ANT-A7	Option Antenna for FLEXLAN
FX-ANT-A8	Option Antenna board for FXE3000 series
FX-ANT-A9	Option waterproof dipole antenna

Other Accessories

Item	Item Name
FX-ANT-LCC1	L type conversion connector

※

An FX-ANT-CEX3 is necessary when one of the following option products: FX-ANT-A7, FX-ANT-A9, FX-ANT-LCC1, FX-ANT-C05, FX-ANT-C2, FX-ANT-C12, and FX-ANT-C25H is going to be connected to the FXE4000 series board.
