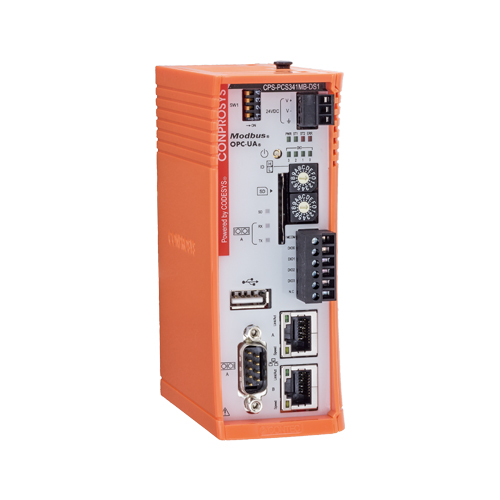

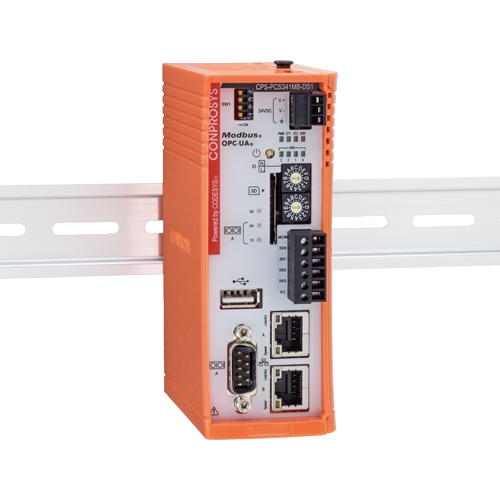

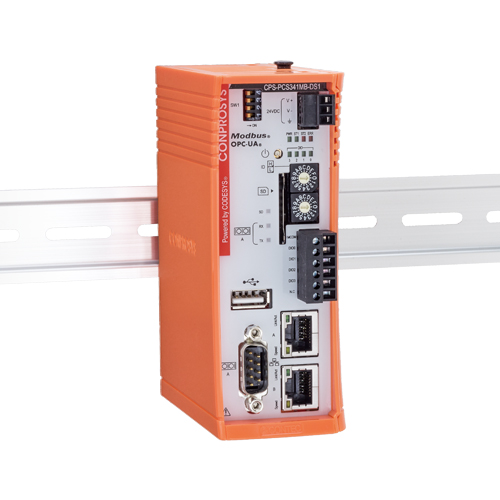

CPS-PCS341MB-DS1-1201 CONPROSYS PAC Series - Configurable Type (IEC 61131-3 CODESYS) / Modbus Master / OPC UA / 1x LAN + HUB / 4x DI / 4x DO / 1x RS-232C

  • Standard Warranty3 yrs
  • Extended WarrantyAvailable
  • Collaborate with the CODESYS
  • Along with Modbus TCP Master
  • Together with OPC UA Server
  • Opto-coupler isolated input (Current sink output compliant), Opto-coupler isolated open collector output (Current sink type)
  • Compact Design
  • Adaptable to a wide range of temperature between -20 and +60°C
  • *
    For details about an extended warranty, please contact us.

Specifications

Controller unit

Communication Ports Ethernet (LAN)
Programming CODESYS (IEC61131-3)

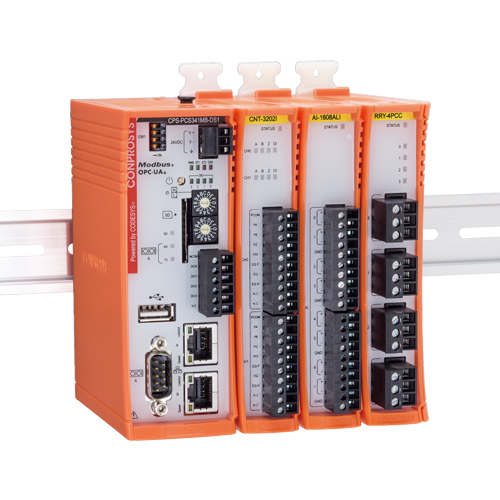

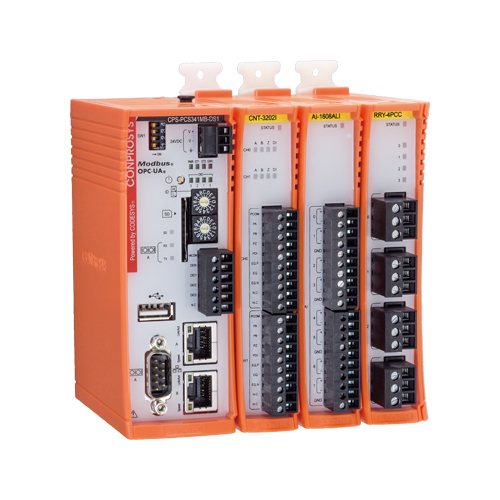

Stack bus CONPROSYS stack
Function OPC UA server; Modbus master; Modbus/TCP slave

Digital I/O

Input Channels 4-ch
Output Channels 4-ch *Share with inputs
Bi-directional I/O Channels -
Response Time (Input) 200μsec (max.)
Response Time (Output) 2msec (max.)
Operating Voltage (Input) -
Operating Voltage (Output) -
Input Circuit Opto-isolated input (for sink current output)
Output Circuit Semiconductor relay output
Built-in Power Supply 12VDC

Analog I/O

Input Channels -
Input Range -
ADC Resolution -
Sampling Rate -
Buffer Memory
Output Channels -
Output Range -
DAC Resolution -
Update rate -

Counter

Number of Channels -
Counting System -
Response speed -

Serial comm.

Number of Channels 1x RS-232C [ASYNC]
Transmission Speed 300 ~ 115,200bps
Isolation Property
Transmission Method
