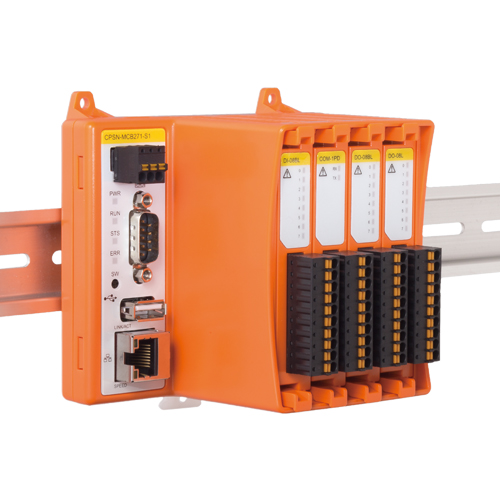

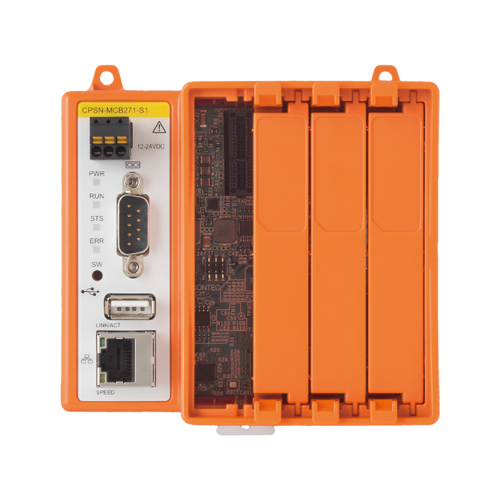

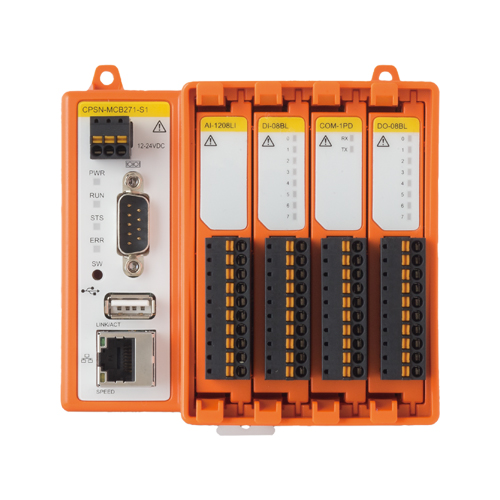

CPSN-MCB271-S1-041 CONPROSYS nano Series Remote I/O - Communication Coupler / Modbus Slave / 4x Slot / 1x LAN / 1x RS-232C

  • Standard Warranty3 yrs
  • Extended WarrantyAvailable

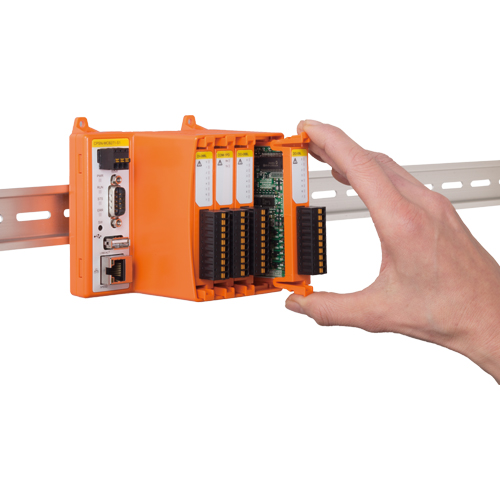

  • I/O module expansion
  • Max. 921,600bps RS-232C Serial Communication (only CPSN-MCB271-S1-041)
  • Adaptable to a wide range of temperature between -20 and +60°C
  • Compatible with Modbus TCP Slave and Modbus RTU Slave
  • Applicable with Windows driver software
  • Support the virtual COM driver
  • *
    For details about an extended warranty, please contact us.

Ordering Information

Ordering Information

Model Description Certification
CPSN-MCB271-S1-041 CONPROSYS nano Series Remote I/O - Communication Coupler / Modbus Slave / 4x Slot / 1x LAN / 1x RS-232C
  • CE marking
  • FCC compliant
  • VCCI

Options

Analog I/O

Item Item Name
CPSN-AI-1208LI Analog Input Module for CONPROSYS nano Series I/O Module 8ch(12bit, 10μsec/ch) / Bus Isolation
CPSN-AI-2408LI Analog Input Module for CONPROSYS nano Series I/O Module 8ch(24bit, 208μsec/ch) / Bus Isolation
CPSN-AO-1602LC Analog Output CONPROSYS nano Series I/O Module 2ch (16bit, Voltage / Current) / Inter-channel Isolation
CPSN-SSI-4C Thermocouple Module for CONPROSYS nano Series I/O Module 4ch(J, K, E, N, R, S, T Type, 251ms/ch) / Bus Isolation

Digital I/O

Item Item Name
CPSN-DI-08BL Digital input CONPROSYS nano Series I/O module 8ch (12VDC on-board power supply isolated 12VDC)
CPSN-DI-08L Digital input CONPROSYS nano Series I/O module 8ch (isolated 12 to 24VDC)
CPSN-DI-16BCL Digital input CONPROSYS nano Series I/O module 16ch (12VDC on-board power supply isolated 12 to 24VDC)
CPSN-DIO-08SL Digital I/O CONPROSYS nano Series I/O module Bi-directional 8ch (isolated 5 to 24VDC)
CPSN-DO-08BL Digital output CONPROSYS nano Series I/O module 8ch (on-board power supply isolated 12VDC)
CPSN-DO-08BRL Digital output CONPROSYS nano Series I/O module 8ch (negative-common 12VDC on-board power supply isolated 12VDC)
CPSN-DO-08L Digital output CONPROSYS nano Series I/O module 8ch (isolated 12 to 24VDC)
CPSN-DO-08RL Digital output CONPROSYS nano Series I/O module 8ch (negative-common isolated 12 to 24VDC)
CPSN-DO-16BL Digital output CONPROSYS nano Series I/O module 16ch (opto-coupler driving power supply)
CPSN-DO-16L Digital output CONPROSYS nano Series I/O module 16ch (isolated 12 to 24VDC)
CPSN-RRY-4PCA Reed relay contact output CONPROSYS nano Series I/O module 4ch (Contacts A isolated up to 125VAC or up to 30VDC)

Counter

Item Item Name
CPSN-CNT-3201I Counter CONPROSYS nano Series I/O module 1ch (32bit Up/Down count 500kHz) / rotary encoder and linear scale interface / Isolated

Serial comm.

Item Item Name
CPSN-COM-1PD Serial Communication CONPROSYS nano Series I/O Module RS-422A/485 1ch / Isolation and Surge Protection

Development Support Tools

Item Item Name
DAQ-DNC-FE A collection of .NET components for DAQfast measurement system development.
DAQ-LV-WIN LabVIEW Data Acquisition Library

Power Supply / AC Adapter

Item Item Name
CPS-PWD-30AW24-01 CONPROSYS 24VDC 1.3A(Max.) Power Supply Unit
CPS-PWD-90AW24-01 CONPROSYS 24VDC 3.8A(Max.) Power Supply Unit
