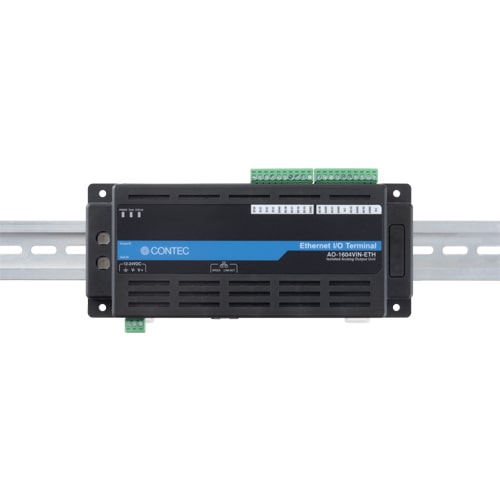

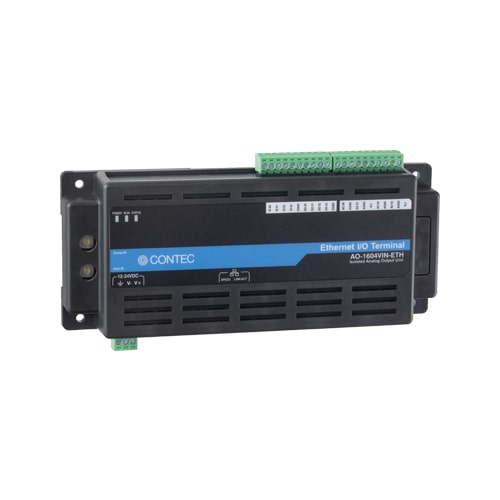

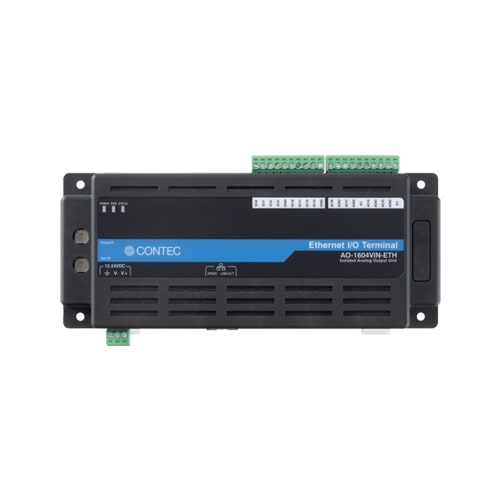

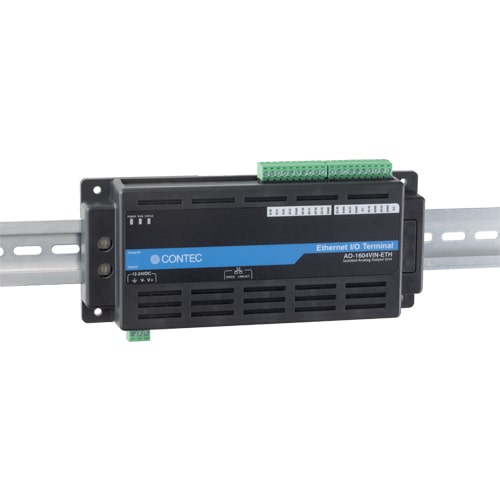

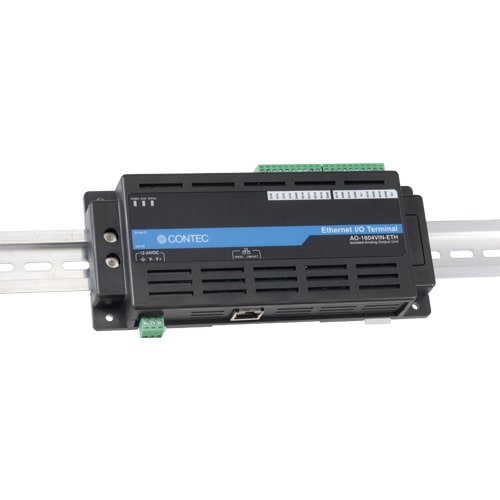

AO-1604VIN-ETH Analog Output Ethernet I/O unit, 16bit, 4ch, Isolated (±10V Voltage Input), N Series

  • Standard Warranty1 yr
  • Extended WarrantyAvailable
  • 4 channels of analog output (voltage output) with high accuracy, and 4 channels of digital input and output respectively are contained
  • Sampling can be driven by a clock or by various triggers
  • Output circuits include Zener diodes for surge voltage protection and circuits for overcurrent protection.
  • Operable in a wide range of 12 - 24VDC power
  • Windows/Linux support device driver
  • Windows/Linux compatible driver libraries are supported.
  • *
    For details about an extended warranty, please contact us.

Ordering Information

Ordering Information

Model Description Certification
AO-1604VIN-ETH N Series for Ethernet Isolated Analog Output Unit (±10V Voltage Input)
  • CE marking
  • FCC compliant
  • VCCI

Options

Device Drivers

Item Item Name
API-AIO(LNX) Analog I/O Driver for Linux
API-AIO(WDM) Windows version High-efficiency Analog I/O Driver

Development Support Tools

Item Item Name
DAQ-DNC-FE A collection of .NET components for DAQfast measurement system development.
DAQ-LV-WIN LabVIEW Data Acquisition Library

Applications

Item Item Name
C-WaveformGenerator Waveform Generator for Windows

Power Supply / AC Adapter

Item Item Name
CPS-PWD-15AW12-01 CONPROSYS 12VDC Power Supply Unit
CPS-PWD-30AW24-01 CONPROSYS 24VDC 1.3A(Max.) Power Supply Unit
CPS-PWD-90AW24-01 CONPROSYS 24VDC 3.8A(Max.) Power Supply Unit
POA201-10-2 AC adaptor (12V,1A)

Other Accessories

Item Item Name
CPS-MAG01-4 Magnet (Four Piece Set)
