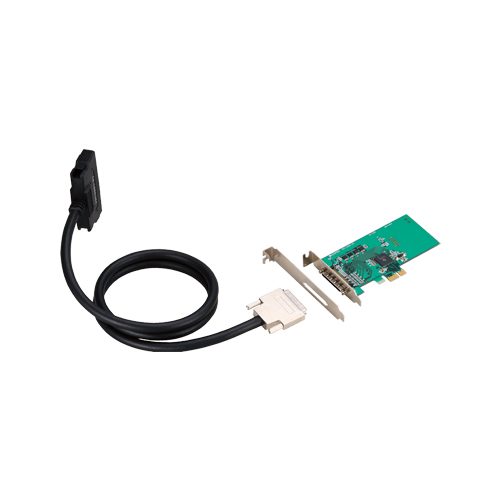

EAD-BE-LPE PCI Bus Expansion Adapter for Low Profile PCI Express PC-Slot

Capable of expand the PCI bus (5V/32-bit, 33 MHz) from a single PCI Express bus slot in the PC.
A suitable PCI bus expansion chassis can be selected, according to the number of slots and board size required.
Power supply controllable in response to the turning on/off of the PC's power supply.
Supporting both of Low Profile and standard PCI slots (exchangeable with the bundled bracket).
