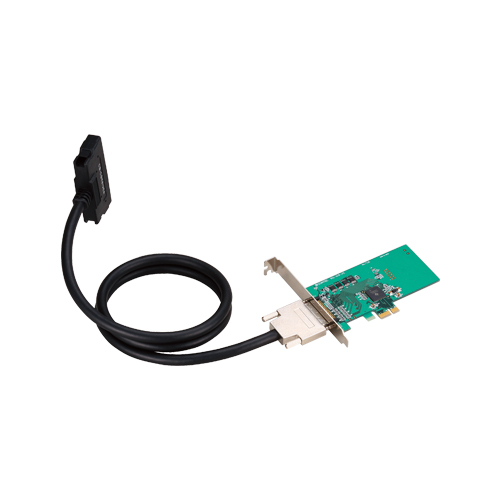

EAD-BE-LPE PCI Bus Expansion Adapter for Low Profile PCI Express PC-Slot

Standard Warranty1 yr
Extended WarrantyAvailable

Capable of expand the PCI bus (5V/32-bit, 33 MHz) from a single PCI Express bus slot in the PC.
A suitable PCI bus expansion chassis can be selected, according to the number of slots and board size required.
Power supply controllable in response to the turning on/off of the PC's power supply.

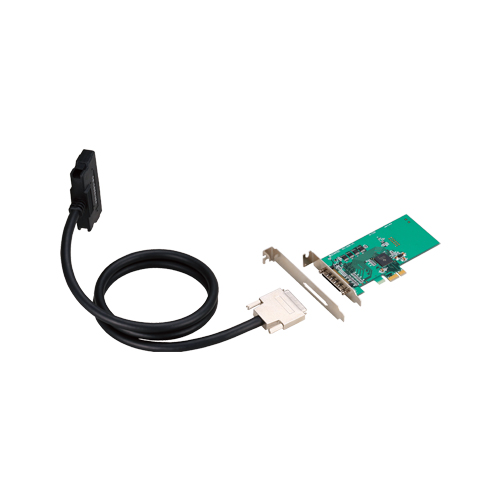

Supporting both of Low Profile and standard PCI slots (exchangeable with the bundled bracket).

*
For details about an extended warranty, please contact us.

Ordering Information

Ordering Information

Model	Description	Certification
EAD-BE-LPE	PCI Bus Expansion Adapter for Low Profile PCI Express PC-Slot

Options

Expansion box

Item	Item Name
ECH-PCI-BE3-F13A	Bus extension type PCI bus expansion chassis (long x 13, power supply built-in)
ECH-PCI-BE3-F4B	Bus extension type PCI bus expansion chassis (long x 4)
ECH-PCI-BE3-F7A	Bus extension type PCI bus expansion chassis (long x 7, power supply built-in)
ECH-PCI-BE3-H2B	Bus extension type PCI bus expansion chassis (short x 2)
ECH-PCI-BE3-H4B	Bus extension type PCI bus expansion chassis (short x 4)
ECH-PCI-BE3-H7A	Bus extension type PCI bus expansion chassis (short × 7, power supply built-in)

Extended Warranty Service

Item	Item Name
ESP-F5	Extended warranty service package (5 years service course) (Japan only)
ESP-S1	Extended warranty service package (Extension one year) (Japan only)
