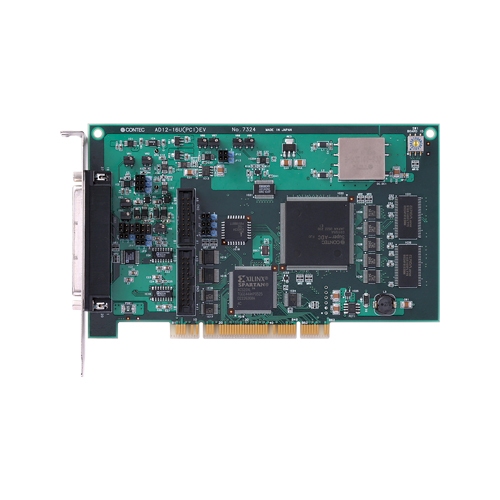

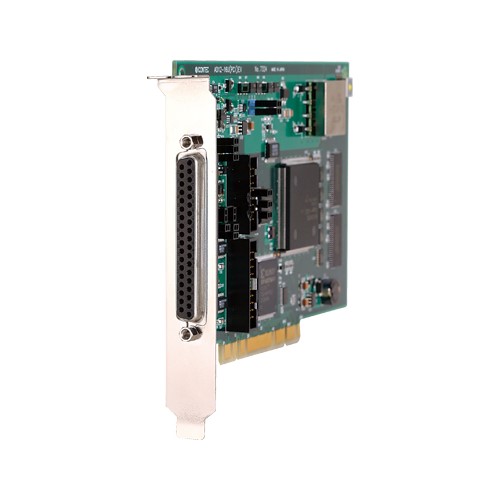

AD12-16U(PCI)EV Analog I/O PCI Card / 16ch AI(12bit 1Ms/s) / 1ch AO / 3ch Counter - Multifunction DAQ E Series

Standard Warranty3 yrs
Extended WarrantyAvailable

Resolution : 12-bit, combination speed : 1µsec/ch
Equipped with high-capacity buffer memory for 16M data and a variety of sampling control functions
Sixteen single-ended channels or eight differential channels (Analog input function)
Mixed on-board channels for analog output and digital I/O
Compact PCI short-size board with a wealth of advanced functions Abundant optional units
Windows/Linux compatible driver libraries are supported.

*
For details about an extended warranty, please contact us.

Supported OS

Specifications

Add-on Module

Series	Analog E(Intelligent)
Bus Specification	PCI
Size	Short Size
Used Connector	D-SUB 37-pin (Female); 2x Pin header 16-pin (Male)

Analog I/O

Input Channels	Single-ended 16-ch (Differential 8-ch)
Input Range	±10V; ±5V; ±2.5V; 0 to 10V; 0 to 5V
ADC Resolution	12-bit
Sampling Rate	1μsec/ch (max.)
Input Buffer Memory	16M Word
Output Channels	1-ch
Output Range	±10V; ±5V; 0 to 10V
DAC Resolution	12-bit
Update rate	6μsec (max.)
Output Buffer Memory	-

Digital I/O

Input Channels	4-ch
Output Channels	4-ch
Bi-directional I/O Channels	-
Response Time (Input)	200nsec (max.)
Response Time (Output)	200nsec (max.)
Operating Voltage (Input)	5VDC-TTL
Operating Voltage (Output)	5VDC-TTL
Input Circuit	Non-isolated TTL level input (Positive logic)
Output Circuit	Non-isolated TTL level output (Positive logic)
Built-in Power Supply	-

Counter

Number of Channels	-
Counting System	-
Response speed	-

Supported OS

Supported OS	Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux

Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux

*
The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.
