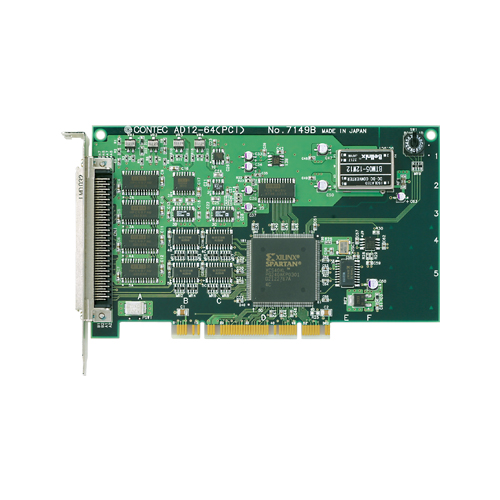

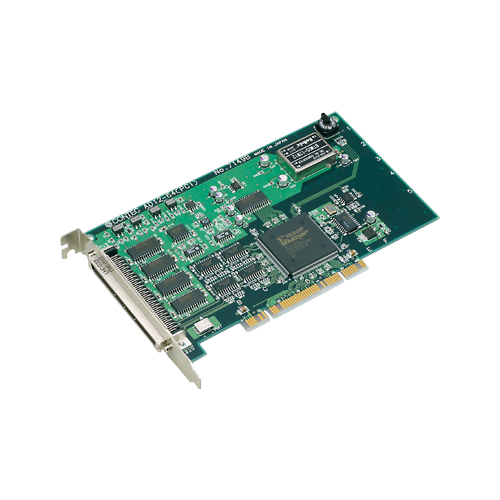

AD12-64(PCI) Analog Input PCI Card / 64ch(12bit 100ks/s)

  • Standard Warranty3 yrs
  • Extended WarrantyAvailable
  • Multi-channel analog input
  • Input range setup by software
  • Sampling control function
  • Digital input-and-output function
  • Option apparatus
  • *
    For details about an extended warranty, please contact us.

Specifications

Add-on Module

Bus Specification PCI
Size Short Size
Used Connector 1.27mm-pitch 96-pin (Male)

Analog I/O

Input Channels Single-ended 64-ch (Differential 32-ch)
Input Range ±10V; ±5V; ±2.5V; ±1.25V; 0 to 10V; 0 to 5V; 0 to 2.5V; 0 to 1.25V
ADC Resolution 12-bit
Sampling Rate 10μsec/ch (max.)
Buffer Memory -
Output Channels -
Output Range -
DAC Resolution -
Update rate -

Digital I/O

Input Channels 4-ch
Output Channels 4-ch
Bi-directional I/O Channels -
Response Time (Input) 200nsec (max.)
Response Time (Output) 200nsec (max.)
Operating Voltage (Input) 5VDC-TTL
Operating Voltage (Output) 5VDC-TTL
Input Circuit Non-isolated TTL level input (Positive logic)
Output Circuit Non-isolated TTL level output (Positive logic)
Built-in Power Supply -

Supported OS

Supported OS Windows 11 (x64); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux
  • *
    The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.
