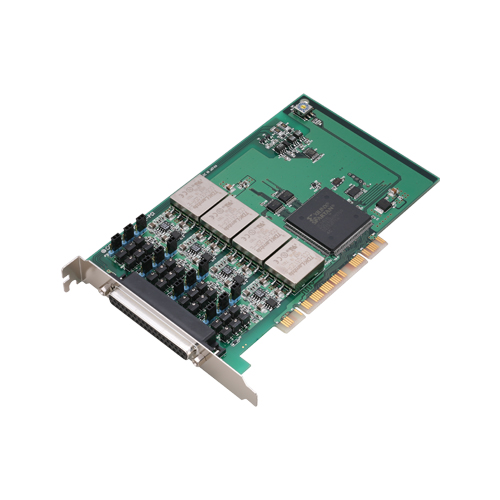

AO-1604CI2-PCI Analog Output PCI Card / 4ch(16bit 50ks/s) / Channel to Channel Isolation

Discontinued

Standard Warranty3 yrs

End of Repair Service: 2020/09/30

Check a compatible replacement

* The end of repair date may change depending on the situation.

Analog output 4ch, 16bit-resolution, conversion speed 20μ sec
PC bus line, opto-coupler isolation between channels
Simultaneous output of voltage to a specified channel or all channels
Windows/Linux compatible driver libraries are attached.
Control of sampling start/stop can be selected by an external trigger or other factor

*
For details about an extended warranty, please contact us.

Supported OS

Specifications

Add-on Module

Series
Bus Specification	PCI
Size	Short Size
Used Connector	D-SUB 37-pin (Female)

Analog I/O

Input Channels	-
Input Range	-
ADC Resolution	-
Sampling Rate	-
Input Buffer Memory	-
Output Channels	4-ch
Output Range	±10V; 0 to 10V; 0 to 20mA
DAC Resolution	16-bit
Update rate	20μsec (max.)
Output Buffer Memory

Digital I/O

Input Channels	-
Output Channels	-
Bi-directional I/O Channels	-
Response Time (Input)	-
Response Time (Output)	-
Operating Voltage (Input)	-
Operating Voltage (Output)	-
Input Circuit	-
Output Circuit	-
Built-in Power Supply	-

Supported OS

Supported OS	Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit)

*
The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.
