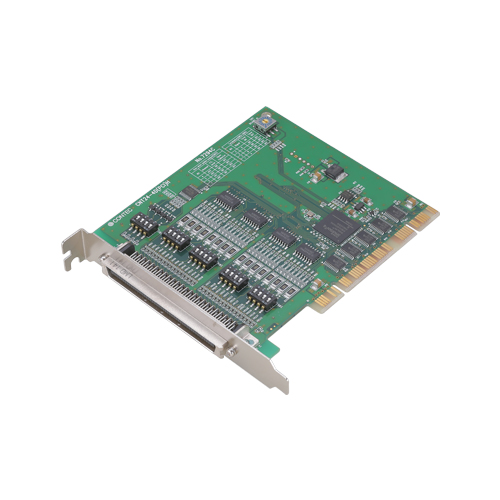

CNT24-4D(PCI)H Counter PCI card 4ch (24bit Up/Down count 1MHz) / Incremental encoder interface

  • Standard Warranty3 yrs
  • Extended WarrantyAvailable
  • It is equipped with four channels of 24-bit up/down counters.
  • The board can count two-phase signals, which can be outputs of some rotary encoders and linear scales.
  • The board can count two-phase signals, which can be outputs of some rotary encoders and linear scales.
  • Each channel can generate an interrupt request signal and a one-pulse output signal when the count data matches a pre-specified value.
  • The board is equipped with a programmable timer to allow interrupts to be generated periodically according to a specified timer value.
  • Each Channel is equipped with a general-purpose input signal (both line-receiver and TTL).
  • *
    For details about an extended warranty, please contact us.

Specifications

Add-on module

Bus Specification PCI
Size Short Size
Used Connector 1.27mm-pitch 96-pin (Male)

Counter

Number of Channels 4-ch
Counting System 24-bit Up/Down count
Response speed 1MHz [TTL] / 1MHz [differential]
