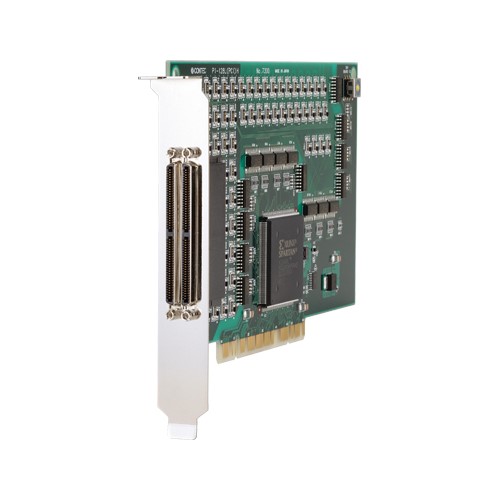

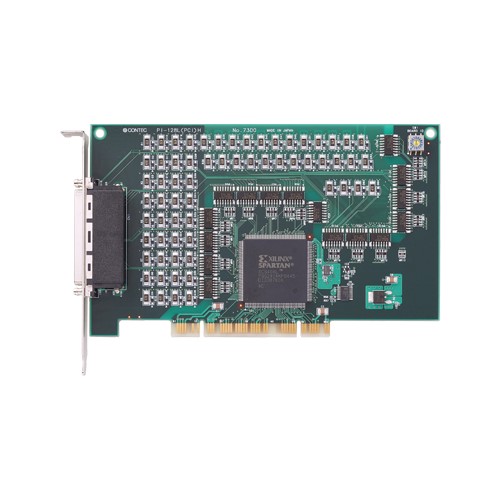

PI-128L(PCI)H Digital input PCI card 128ch (isolated 12 - 24VDC)

Standard Warranty3 yrs
Extended WarrantyAvailable

A different external power supply can be used for each common pin as it is shared by 16 channels.
Opto-coupler used to electrically isolated input signal interface from the PCI bus, offering good noise immunity.
Capable of using up to 16 channels of input signals as interrupt inputs. You can also select the interrupt trigger edge of the input signal.
Digital filtering that prevents input signal noise and chattering.

*
For details about an extended warranty, please contact us.

Supported OS

Overview / Features

This board is a PCI-compliant interface board for input/output of digital signals. This board can input the digital signal of 12 - 24VDC. PI-128L(PCI)H can input up to 128 channels. With the Windows version, the Linux version driver (API-PAC(W32)).

A different external power supply can be used for each common pin as it is shared by 16 channels.
Opto-coupler used to electrically isolated input signal interface from the PCI bus, offering good noise immunity.
Capable of using up to 16 channels of input signals as interrupt inputs. You can also select the interrupt trigger edge of the input signal.
Digital filtering that prevents input signal noise and chattering.
