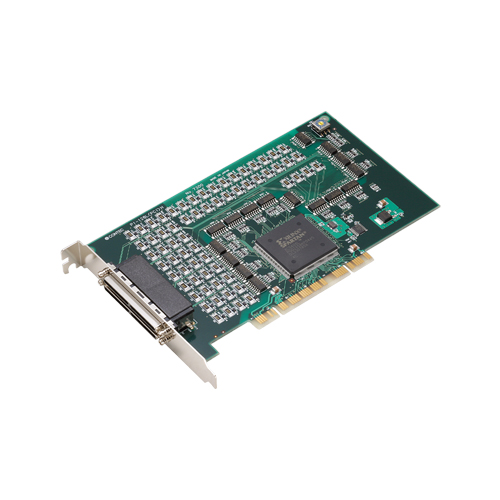

PI-128L(PCI)H Digital input PCI card 128ch (isolated 12 - 24VDC)

Standard Warranty3 yrs
Extended WarrantyAvailable

A different external power supply can be used for each common pin as it is shared by 16 channels.
Opto-coupler used to electrically isolated input signal interface from the PCI bus, offering good noise immunity.
Capable of using up to 16 channels of input signals as interrupt inputs. You can also select the interrupt trigger edge of the input signal.
Digital filtering that prevents input signal noise and chattering.

*
For details about an extended warranty, please contact us.

Supported OS

Specifications

Add-on Module

Series
Bus Specification	PCI
Size	Short Size
Used Connector	2x 0.8mm-pitch 100-pin (Female)

Digital I/O

Input Channels	128-ch
Output Channels	-
Bi-directional I/O Channels	-
Response Time (Input)	200μsec (max.)
Response Time (Output)	-
Operating Voltage (Input)	12 to 24VDC
Operating Voltage (Output)	-
Input Circuit	Opto-isolated input (for sink current output)
Output Circuit	-
Built-in Power Supply	-

Supported OS

Supported OS	Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2022; Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux

Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2022; Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux

*
The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.
