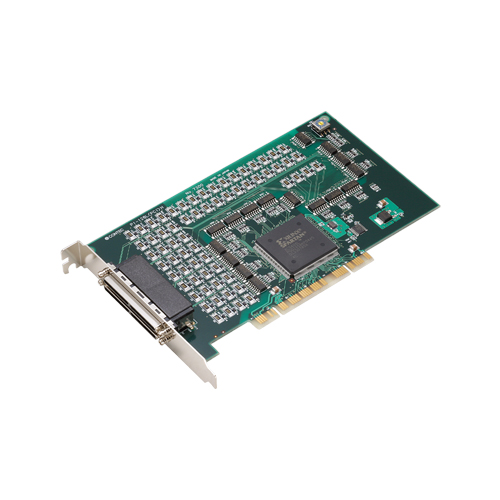

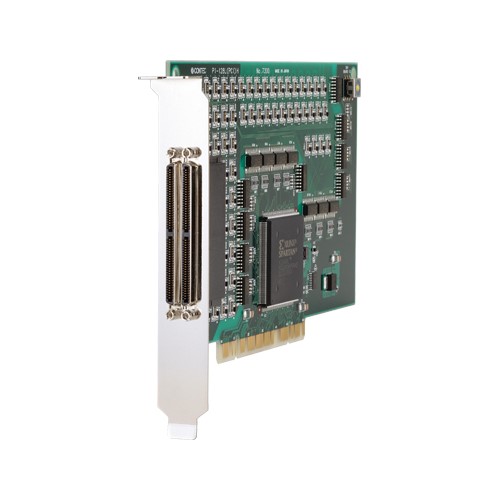

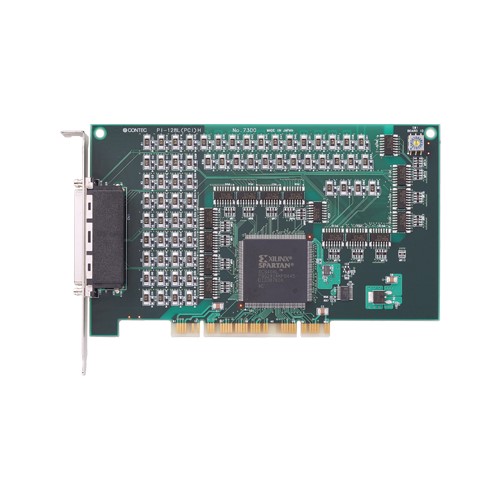

PI-128L(PCI)H Digital input PCI card 128ch (isolated 12 - 24VDC)

Standard Warranty3 yrs
Extended WarrantyAvailable

A different external power supply can be used for each common pin as it is shared by 16 channels.
Opto-coupler used to electrically isolated input signal interface from the PCI bus, offering good noise immunity.
Capable of using up to 16 channels of input signals as interrupt inputs. You can also select the interrupt trigger edge of the input signal.
Digital filtering that prevents input signal noise and chattering.

*
For details about an extended warranty, please contact us.

Supported OS

Ordering Information

Ordering Information

Model	Description	Certification
PI-128L(PCI)H	Digital input PCI card 128ch (isolated 12 - 24VDC)

Options

Device Drivers

Item	Item Name
API-DIO(98/PC)	Windows version Digital I/O Driver
API-DIO(LNX)	Linux version Digital I/O Driver
API-DIO(WDM)	Windows Driver for Digital I/O Driver
API-TIMER(W32)	Timer Driver
API-TIMER(WDM)	Windows Driver for Timer Driver
IO-LIB(WDM)	Windows General-purpose I/O Driver

Development Support Tools

Item	Item Name
ACX-PAC(W32)	ActiveX components sets for measurement system development
DAQ-DNC-FE	A collection of .NET components for DAQfast measurement system development.
DAQ-LV-WIN	LabVIEW Data Acquisition Library
VI-DAQ	VI Library of data acquisition for LabVIEW

Expansion Accessory Module

Item	Item Name
CM-64L	Signal monitor Accessory for Digital I/O

Cable

Item	Item Name
PCA100P	100pin 0.8mm-pitch Connector to Open-Ended, Flat Cable
PCB10096PS	96pin 1.27mm Pitch Conversion Shield Cable for 100pin 0.8mm Pitch Connector
PCB100PS	Both sides with connector shield cable for 100 pin 0.8mm pitch connectors
PCB100WS	37pin D-SUB x2 Distribution Shield Cable for 100pin 0.8mm Pitch Connector

Terminal

Item	Item Name
DTP-3C	General Purpose Terminal
DTP-4C	Screw Terminal
DTP-64A	Screw Terminal (M3 x 96)
EPD-100A	Screw Terminal (M3 x 100)
EPD-37	Screw Terminal (M3.5 x 37)
EPD-96	Screw Terminal (M3.5 x 96)
EPD-96A	Screw Terminal (M3 x 96)

Other Accessories

Item	Item Name
CCB-96	Connector conversion card

Extended Warranty Service

Item	Item Name
ESP-F6	Extended warranty service package (6 years service course) (Japan only)
