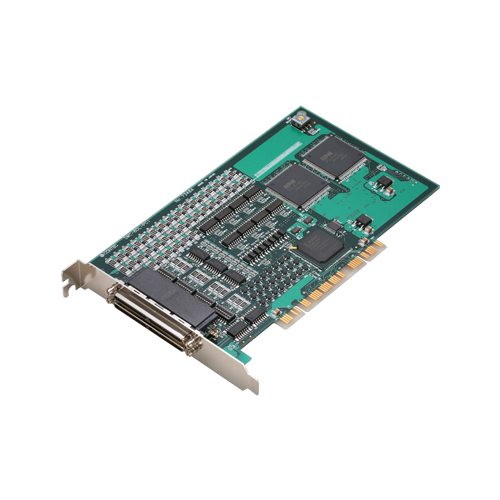

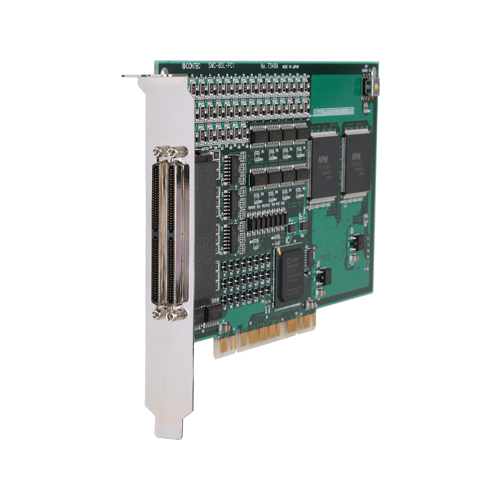

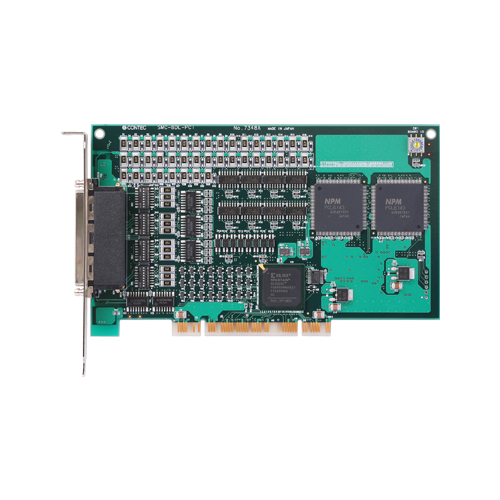

SMC-8DL-PCI High-speed line driver output 8 axis motion control board for PCI

Capable of multi-axis independent control and pulse output up to 9.8Mpps
Capable of controlling the jogging at fixed speed or by linear/S-curve acceleration and deceleration, positioning,and origin returning
Provided with various input/output formats enabling connection to an encoder input circuit as well as pulse output circuit
With the multi-axis synchronization control function,capable of aligning the timing for operation start and end
Capable of speed and position overriding

Ordering Information

Model	Description	Certification
SMC-8DL-PCI	High-speed line driver output 8 axis motion control board for PCI

Item	Item Name
API-SMC(LNX)	Linux Driver for Motion Control
API-SMC(WDM)	Motion Control Driver
API-TIMER(W32)	Timer Driver

Item	Item Name
PCB100PS	Both sides with connector shield cable for 100 pin 0.8mm pitch connectors

Item	Item Name
EPD-100A	Screw Terminal (M3 x 100)

Item	Item Name
CCB-SMC2	Conversion terminal for SMC series

Item	Item Name
ESP-F6	Extended warranty service package (6 years service course) (Japan only)
