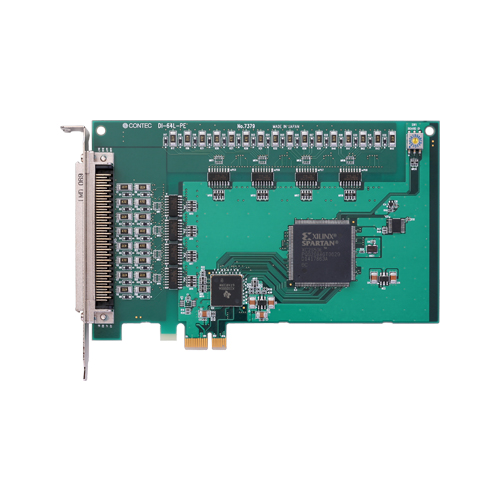

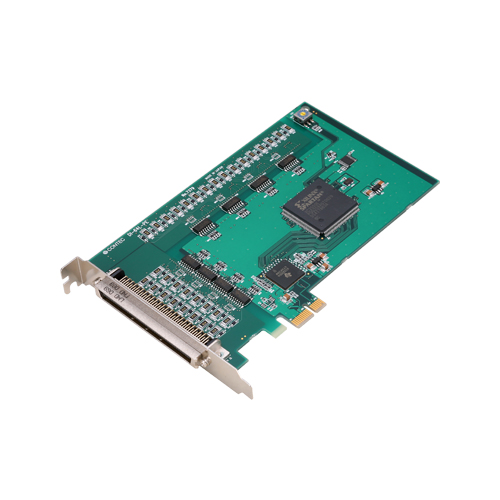

DI-64L-PE Digital input PCI Express card 64ch (isolated 12 - 24VDC)

  • Standard Warranty3 yrs
  • Extended WarrantyAvailable
  • Opto-coupler isolated input (supporting current sink output) and opto-coupler isolated open-collector output (current sink type)
  • Opto-coupler bus isolation
  • You can use all of the input signals as interrupt events.
  • Windows/Linux compatible driver libraries are attached.
  • This product has a digital filter to prevent input signals from carrying noise or a chattering.
  • Output circuits include zener diodes for surge voltage protection and overcurrent protection circuit.
  • *
    For details about an extended warranty, please contact us.

Specifications

Add-on Module

Bus Specification PCI Express
Size Short Size
Used Connector 1.27mm-pitch 96-pin (Male)

Digital I/O

Input Channels 64-ch
Output Channels -
Bi-directional I/O Channels -
Response Time (Input) 200μsec (max.)
Response Time (Output) -
Operating Voltage (Input) -
Operating Voltage (Output) 12 to 24VDC
Input Circuit Opto-isolated input (for sink current output)
Output Circuit -
Built-in Power Supply -

Supported OS

Supported OS Windows 11 (x64); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2022; Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux
  • *
    The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.
