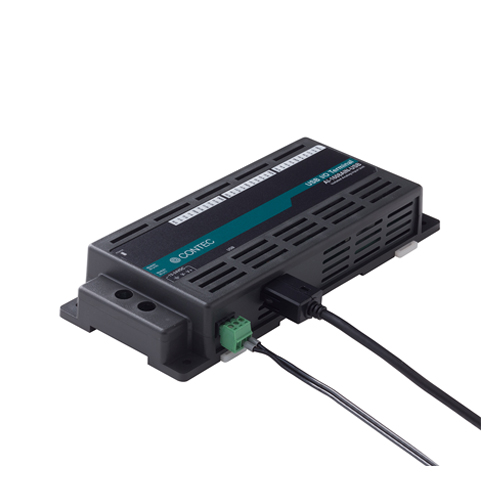

AI-1608AIN-USB Analog Input USB I/O Unit / 8ch (16bit 50ks/s) / Bus Isolation - N Series

  • Standard Warranty1 yr
  • Extended WarrantyAvailable
  • 8 channels of analog input (current input) with high accuracy, and 4 channels of digital input and output respectively are contained
  • Buffer memory available in FIFO format
  • Sampling can be driven by a clock or by various triggers
  • Software-based calibration function
  • Isolated from the bus by a digital isolator
  • Compact design not restricting installation location (188.0(W) x 78.0(D) x 30.5(H))
  • *
    For details about an extended warranty, please contact us

Ordering Information

Ordering Information

Model Description / Certification
AI-1608AIN-USB Analog Input USB I/O Unit / 8ch (16bit 50ks/s) / Bus Isolation - N Series
  • FCC compliant
  • CE marking

Options

Power Supply / AC Adapter

Item Item Name
CPS-PWD-15AW12-01 12VDC AC-DC Converter
CPS-PWD-30AW24-01 24VDC AC-DC Converter
CPS-PWD-90AW24-01 24VDC AC-DC Converter
POA201-10-2 F&eIT series AC adaptor (12V,1A)

Other Accessories

Item Item Name
CPS-MAG01-4 Magnet (Four Piece Set)

Software Development Kit

Item Item Name
API-AIO(WDM) for USB Analog I/O Driver API-AIO(WDM) for USB

Library Software

Item Item Name
DAQfast LabVIEW Data Acquisition Library

Application software

Item Item Name
C-LOGGER Data Logger Software for Windows
