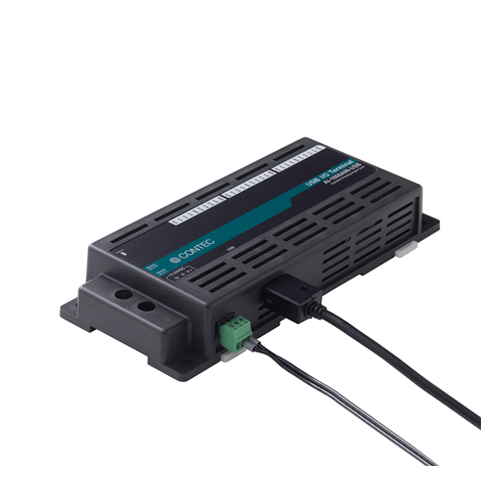

AI-1608AIN-USB Analog Input USB I/O Unit / 8ch (16bit 50ks/s) / Bus Isolation - N Series

  • NEW
  • Standard Warranty1 yr
  • Extended WarrantyAvailable
  • 8-ch of high precision analog input (current input), 4-ch of digital input and 4-ch of digital output
  • Buffer memory that can be used in FIFO or RING format is equipped.
  • Various trigger conditions, sampling clocks
  • Installed with software calibration function
  • Various mounting methods such as screwing, magnets (optional), DIN rail etc are possible.
  • Compact design not restricting installation location (188.0(W) x 78.0(D) x 30.5(H))
  • *
    For details about an extended warranty, please contact us

Specifications

Add-on module

Bus Specification USB 2.0
Size N Type
Used Connector 3x 3.5mm-pitch 10-pin 2-piece terminal block

Analog I/O

Input Channels Differential 8-ch
Input Range 0 to 20mA
ADC Resolution 16-bit
Sampling Rate 20μsec/ch (max.)
Output Channels
Output Range -
DAC Resolution -
Update rate -

Digital I/O

Input Channels 4-ch
Output Channels 4-ch
Bi-directional I/O Channels -
Response Time (Input)
Response Time (Output)
Operating Voltage (Input) 5VDC-TTL
Operating Voltage (Output) 5VDC-TTL
Input Circuit Non-isolated TTL level input (Negative logic)
Output Circuit Non-isolated TTL open-collector output (Negative logic)
Built-in Power Supply -
