AI-1608GY-USB Analog Input USB I/O Unit / 8ch(16bit 250ks/s)

Standard Warranty1 yr
Extended WarrantyAvailable

Input 4μsec/ch, 8ch, 16bit resolution
Compatible to USB1.1/USB2.0 and not necessary to power this product externally as the bus power is used.
Sampling can be driven by a clock or by various triggers
Equipped with the buffer memory which can be used in either FIFO or ring format
Windows compatible driver libraries are provided.
Software-based calibration function

*
For details about an extended warranty, please contact us

Specifications

Add-on Module

Series	USB Y(Mobile)
Bus Specification	USB
Size	Y Type
Used Connector	2x Screw terminal block 14-pin

Analog I/O

Input Channels	Single-ended 8-ch
Input Range	±10V
ADC Resolution	16-bit
Sampling Rate	4μsec/ch (Max.)
Input Buffer Memory	8k Word
Output Channels	-
Output Range	-
DAC Resolution	-
Update rate	-
Output Buffer Memory	-

Digital I/O

Input Channels	4-ch
Output Channels	4-ch
Bi-directional I/O Channels	-
Response Time (Input)	200nsec (max.)
Response Time (Output)	200nsec (max.)
Operating Voltage (Input)	3.3VDC-LVTTL; 5VDC-TTL
Operating Voltage (Output)	3.3VDC-LVTTL
Input Circuit	Non-isolated TTL level input (Positive logic); Non-isolated LVTTL level input (Positive logic)
Output Circuit	Non-isolatedLVTTL level output (Positive logic)
Built-in Power Supply	-

Supported OS

Supported OS	Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux

Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux

*
The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.

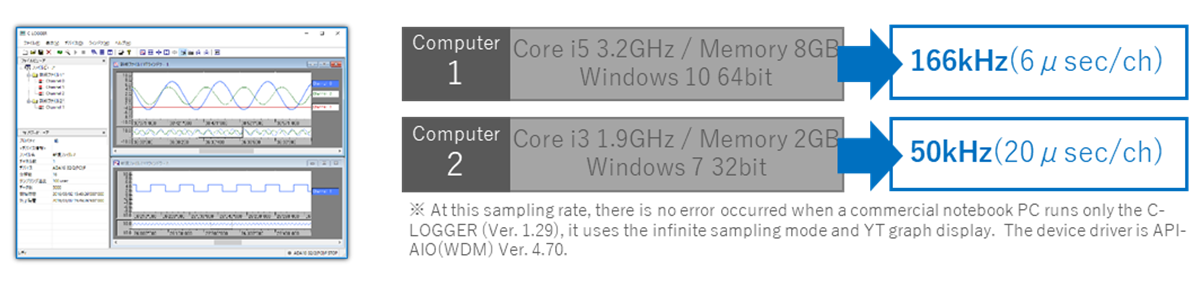

Excellent Stability! No Errors for More Than 10 Hours with a Logger Software, C-LOGGER.

C-LOGGER is a Windows version of data logger software for analog I/O device products. It provides true data collection and monitoring function, such collected signal data graph drawing, zoom observation, file saving, and dynamic transfer to Excel (spreadsheet program) without any need for annoying programming.
