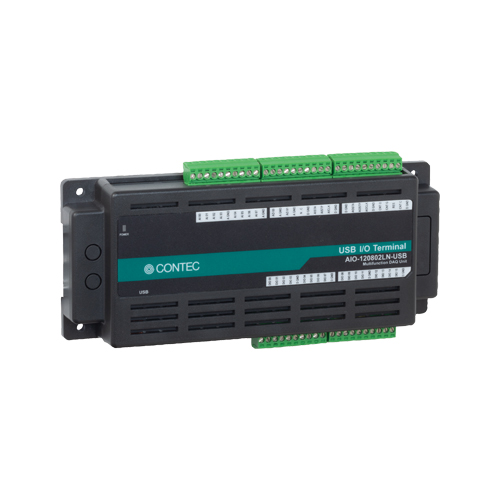

AIO-120802LN-USB Analog I/O USB I/O Unit / 8ch AI(12bit 200ks/s) / 2ch AO - N Series

  • Standard Warranty1 yr
  • Extended WarrantyAvailable
  • Multi-function
  • Analog I/O can be synchronized with an internal or external clock.
  • Digital filter function to prevent wrong recognition of external signal chattering is provided.
  • Buffer memory available for background processing independent of software
  • Software-based calibration function
  • Compact design not restricting installation location (188.0(W) x 78.0(D) x 30.5(H))
  • *
    For details about an extended warranty, please contact us

Specifications

Add-on module

Bus Specification USB 2.0
Size N Type
Used Connector -

Analog I/O

Input Channels Single-ended 8-ch (Differential 4-ch)
Input Range ±10V; ±5V; ±2.5V; 0 to 10V
ADC Resolution 12-bit
Sampling Rate 5μsec/ch (max.)
Output Channels 2-ch
Output Range ±10V; ±5V; 0 to 10V; 0 to 5V
DAC Resolution 12-bit
Update rate 12μsec (max.)

Digital I/O

Input Channels -
Output Channels -
Bi-directional I/O Channels 16点
Response Time (Input) 200nsec (max.)
Response Time (Output) 200nsec (max.)
Operating Voltage (Input) 5VDC-TTL
Operating Voltage (Output) 5VDC-TTL
Input Circuit Non-isolated TTL level input (Positive logic)
Output Circuit Non-isolated TTL level output (Positive logic)
Built-in Power Supply -

Counter

Number of Channels 1-ch
Counting System 32-bit Up count
Response speed 5MHz
