AIO-163202FX-USB Analog I/O USB I/O Unit / 32ch AI(16bit 500ks/s) / 2ch AO / 2ch Counter - Multifunction DAQ F Series

  • Standard Warranty1 yr
  • Extended WarrantyAvailable

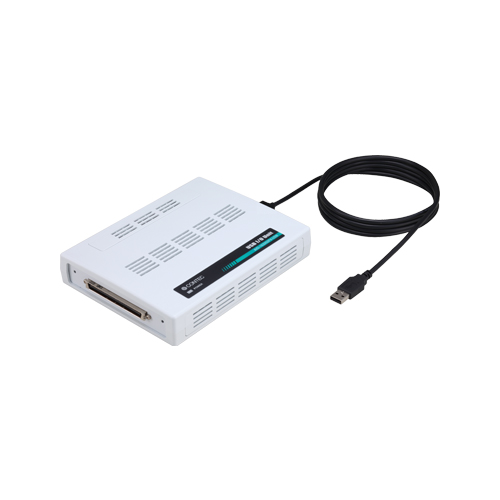

  • aio-163202fx-usb_rgb_96dpi_500x500モーダルで開く
  • Multi-function
  • The event controller can be used to implement a wide range of different sampling control schemes
  • Buffer memory for 128K of data available for background processing
  • USB HUB function, the CONTEC’s USB supported products (Max. 4) can be used.
  • Compatible with PCI / PCI Express bus board and Card Bus PC card in it’s design. Common connector shape and pin assignment with PCI / PCI Express bus board and Card Bus PC card.
  • Data logger software, Windows compatible driver libraries are provided.
  • *
    For details about an extended warranty, please contact us.

Ordering Information

Ordering Information

Model Description Certification
AIO-163202FX-USB Analog I/O USB I/O Unit / 32ch AI(16bit 500ks/s) / 2ch AO / 2ch Counter - Multifunction DAQ F Series
  • CE marking
  • VCCI

Options

Device Drivers

Item Item Name
API-AIO(LNX) Analog I/O Driver for Linux
API-AIO(WDM) Windows version High-efficiency Analog I/O Driver

Development Support Tools

Item Item Name
ACX-PAC(W32) ActiveX components sets for measurement system development
DAQ-DNC-FE A collection of .NET components for DAQfast measurement system development.
DAQ-LV-WIN LabVIEW Data Acquisition Library
ML-DAQ MATLAB compliant Data Acquisition Library
VI-DAQ VI Library of data acquisition for LabVIEW

Applications

Item Item Name
C-LOGGER Data Logger Software for Windows
C-WaveformGenerator Waveform Generator for Windows

Expansion Accessory Module

Item Item Name
ATBA-32F Buffer Amplifier Function Extension Box for analog input card
ATBA-8F Buffer Amplifier Function Extension Box for analog input card

Cable

Item Item Name
PCA96P A one end connector flat cable for 96 pin Half-Pitch connector
PCA96PS-P A one end connector shield cable for 96 pin Half-Pitch connector (Mold type)
PCB96P Flat Cable with Connectors on both sides for 96-pin Half Pitch Connectors
PCB96PS-P Both sides with connector shield cable for 96 pin Half-Pitch connector(Mold type)

Terminal

Item Item Name
ATP-32F BNC Connectors for Analog I/O Card
ATP-8 BNC Connector Accessory for Analog I/O Card
DTP-64A Screw Terminal (M3 x 96)
EPD-96 Screw Terminal (M3.5 x 96)
EPD-96A Screw Terminal (M3 x 96)

Power Supply / AC Adapter

Item Item Name
POA200-20-2 AC-DC Power Adaptor(5VDC, 2A)
POW-AD13GY F&eIT series AC-DC Power Supply Unit Input 85-132VAC, Output 5VDC 3A
POW-AD22GY F&eIT series AC-DC Power Supply Unit Input 85-264VAC, Output 5VDC 2A
POW-DD10GY F&eIT series DC-DC Power Supply Unit Input : DC10-30V, Output : DC5V 3A

Other Accessories

Item Item Name
BRK-USB-X USB I/O Unit Bracket for X series
