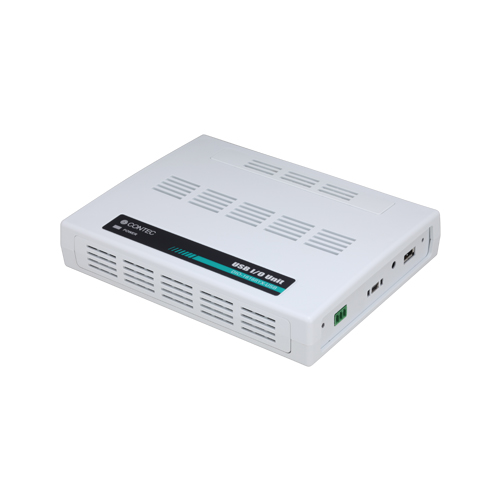

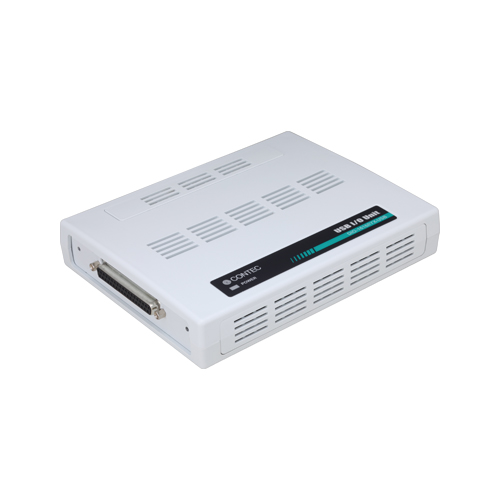

DIO-1616RYX-USB Digital I/O USB I/O unit 16ch/16ch (isolated 12 - 24VDC / - 120VAC - 120VDC) - the X series

  • Discontinued
  • Standard Warranty1 yr
  • Extended WarrantyAvailable
  • モーダルで開く
  • モーダルで開く
  • dio-1616ryx-usb_r_rgb_96dpi_500x500モーダルで開く
  • End of Repair Service: 2032/03/09

Check a compatible replacement

* The end of repair date may change depending on the situation.

  • Optocoupler isolated input (compatible with current sink output/current source output) and semiconductor-relay output
  • Optocoupler and semiconductor-relay bus isolation
  • You can use 16 input signals as interrupt request signals.
  • USB HUB function
  • Connectors are compatible with PCI/PCI Express bus-compatible board
  • Windows compatible driver libraries are provided.
  • *
    For details about an extended warranty, please contact us.

Ordering Information

Replacement Product

Model Definition
Digital I/O USB I/O unit 16ch/16ch (isolated 12 - 24VDC / - 120VAC - 120VDC) - the X series
DIO-1616RYX2-USB
  • The device identification method has been changed from an internal ID to a switch setting, improving identification when multiple units are connected.
  • Maximum number of concurrently usable units: 127 → 16.
  • When switching from the conventional product, the device driver API-DIO (WDM) / API-DIO (LNX) must be updated to a supported version.
  • *
    There are no changes to the API specifications or I/O operation specifications.
  • *
    For details, please see datasheets and manuals.

Ordering Information

Model Description Certification Buy
DIO-1616RYX-USB [Discontinued] [End of Repair Service : March 9, 2032] Digital I/O USB I/O unit 16ch/16ch (isolated 12 - 24VDC / - 120VAC - 120VDC) - the X series
  • CE marking
  • FCC compliant
  • VCCI
 Where to buy

Options

Device Drivers

Item Item Name
API-DIO(LNX) Linux version Digital I/O Driver
API-DIO(WDM) Windows Driver for Digital I/O Driver

Development Support Tools

Item Item Name
ACX-PAC(W32) ActiveX components sets for measurement system development
DAQ-DNC-FE A collection of .NET components for DAQfast measurement system development.
DAQ-LV-WIN LabVIEW Data Acquisition Library

Expansion Accessory Module

Item Item Name
CM-32L Signal monitor Accessory for Digital I/O

Cable

Item Item Name
PCA37P 37pin D-type(M) to Open-Ended, Flat Cable
PCA37PS-P A one end connector (Mold type) shield cable for 37 pin D-SUB connector
PCB37P 37pin D-type(M) at Each End, Flat Cable
PCB37PS-P 37pin D-type(M) at Each End, Shield Cable

Terminal

Item Item Name
DTP-3C General Purpose Terminal
DTP-4C Screw Terminal
EPD-37 Screw Terminal (M3.5 x 37)

Power Supply / AC Adapter

Item Item Name
POA200-20-2 AC-DC Power Adaptor(5VDC, 2A)

Other Accessories

Item Item Name
BRK-USB-X USB I/O Unit Bracket for X series
