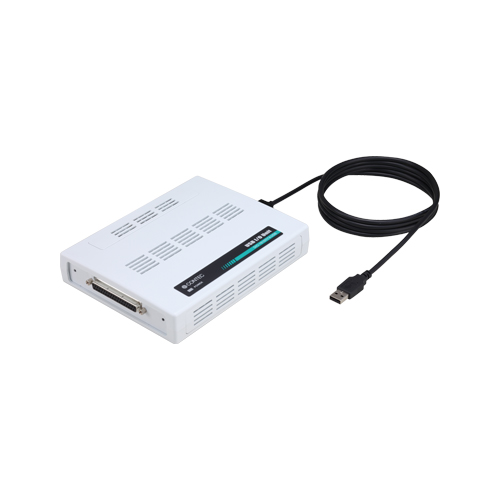

DIO-1616RYX-USB Digital I/O USB I/O unit 16ch/16ch (isolated 12 - 24VDC / - 120VAC - 120VDC) - the X series

Standard Warranty1 yr
Extended WarrantyAvailable

Optocoupler isolated input (compatible with current sink output/current source output) and semiconductor-relay output
Optocoupler and semiconductor-relay bus isolation
You can use 16 input signals as interrupt request signals.
USB HUB function
Connectors are compatible with PCI/PCI Express bus-compatible board
Windows compatible driver libraries are provided.

*
For details about an extended warranty, please contact us.

Supported OS

Specifications

Add-on Module

Series	USB X(Mass connector)
Bus Specification	USB
Size	X Type
Used Connector	D-SUB 37-pin (Female)

Digital I/O

Input Channels	16-ch
Output Channels	16-ch
Bi-directional I/O Channels	-
Response Time (Input)	200μsec (max.)
Response Time (Output)	200μsec (max.)
Operating Voltage (Input)	12 to 24VDC
Operating Voltage (Output)	to 120VAC / VDC
Input Circuit	Opto-isolated input (for both current sink and source output)
Output Circuit	Semiconductor relay output
Built-in Power Supply	-

Supported OS

Supported OS	Windows 11 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2022; Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux

Windows 11 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2022; Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux

*
The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.
