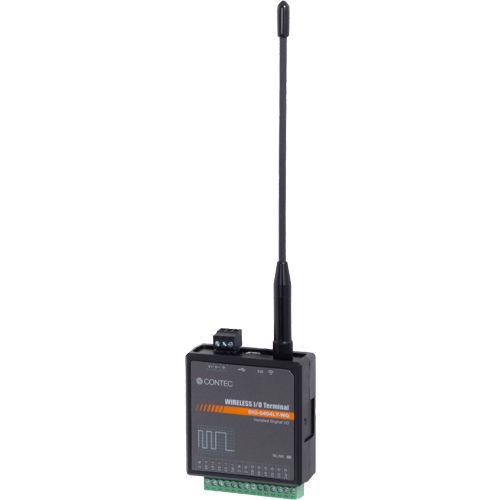

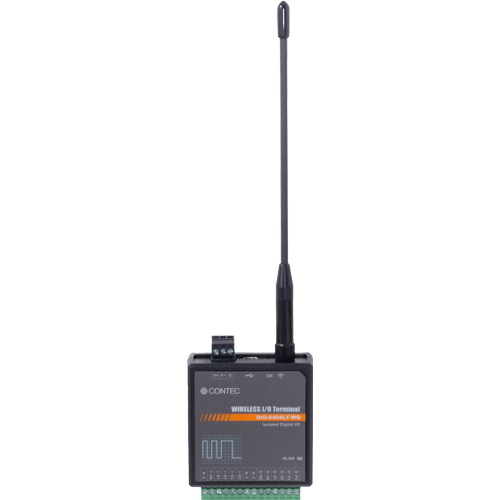

DIO-0404LY-WQ-US Isolated Digital I/O Terminal for Sub-1GHz band Wireless (USA only)

  • Standard Warranty1 yr
  • Supports Sub-1GHz band wireless with excellent transmission distance
  • Highly reliable multi-hop communication
  • Adaptable to a wide range of temperature
  • Windows version of digital I/O driver API-DIO(WDM)

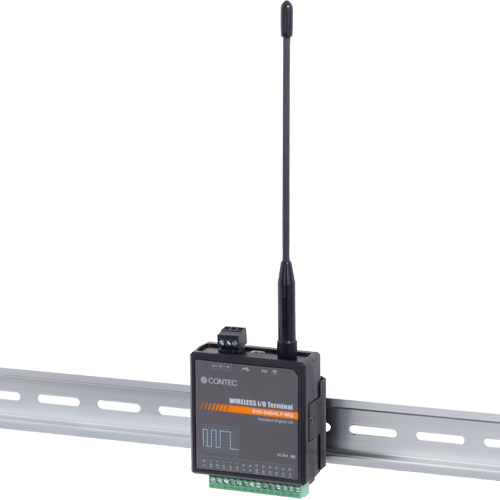

  • Easy mounting on DIN rail
  • Opto-coupler isolated inputs (compatible with current sink output), Opto-coupler isolated open-collector outputs (current sink type)

Specifications

Add-on module

Bus Specification Sub-1GHz band wireless
Size Y Type
Used Connector 1x Screw terminal block 14-pin

Digital I/O

Input Channels 4-ch
Output Channels 4-ch
Bi-directional I/O Channels -
Response Time (Input) 200μsec (max.)
Response Time (Output) 200nsec (max.)
Operating Voltage (Input) 12 to 24VDC
Operating Voltage (Output) 12 to 24VDC
Input Circuit Opto-isolated input (for sink current output)
Output Circuit Opto-isolated open-collector output (sink current type)
Built-in Power Supply -
