Overview / Features

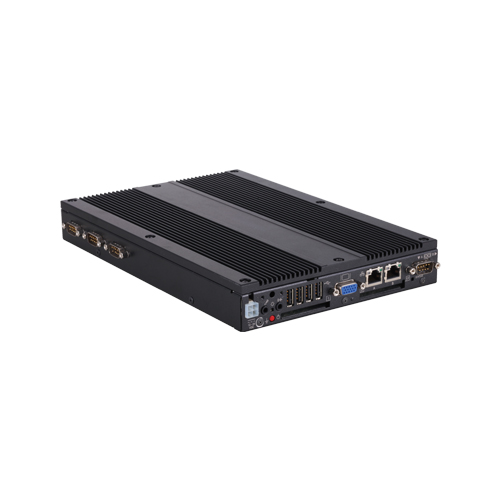

This product is a fanless PC for embedded use based on an Atom processor N270 and a 945GSE (GMA950 incorporated) chipset. Operates in less power while ensuring sufficient performance, and permits installation in an A4-sized or smaller footprint with about 50mm in height*1. The 'resource-saving PC' contributes downsizing and power-saving of equipment to reduce your running cost and to promote energy efficiency. It has analog I/O, digital I/O, and counter input features equivalent to three of CONTEC`s measurement control boards.

• Immediate measurement control enabled by internal analog I/O, digital I/O, and counter input features

  • It contains analog I/O, digital I/O, and counter input features equivalent to CONTEC's measurement control boards (AIO-163202F-PE, DIO-1616L-PE, CNT-3204MT-LPE). A set of this product features measurement control that can measure voltage, detect location, etc.
• Serving the downsizing of equipment, a small footprint design for A4-sized or smaller installation area

  • The product adopts space-saving design for A4-sized or smaller installation area 182(W) x 270(D) x 35(H), permitting placement with opening of only 50mm. It largely serves downsizing of your equipment, fits any area with the aestheticness kept. It is also possible to attach to the VESA standard 75 x 75, 100 x 100mm using the optional fittings.
• Slitless/fanless design that reduces maintenance work

  • It employs slitless/fanless designing achieved by the elimination of radiating slit and CPU fan. It is free from dusts and foreign objects, and the use the parts that degrades over the years is avoided in most case, resulting in drastic alleviation of the maintenance burden.

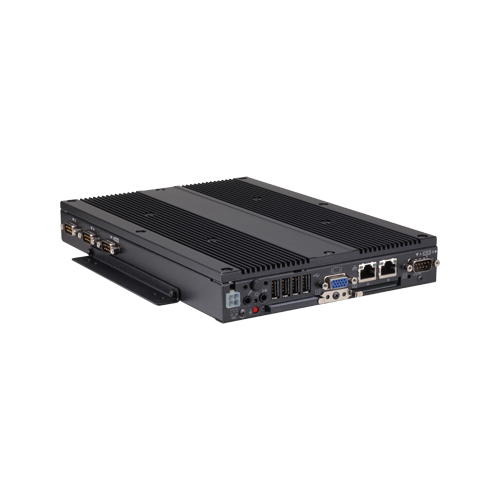

• Falling-off prevention tools and fixing clamps provided to avoid trouble caused by disconnected cable

  • This product stays trouble-free, being equipped with USB removal prevention fitting and cable clamp for connectors with no locking mechanism, such as USB cable, and with hardware to properly mount and avoid falling out of CF card.
• Remote power management function to reduce operation tasks

  • This product supports timed/automated system start-up (Resume By Alarm). For example, it enables unattended operation, such as starting to show information of an establishment in unison at opening time. Also, it supports system start-up externally via network (Wake On LAN) and modem (Power On by Ring). It encourages significant labor saving in operation.
• Major types of peripherals are supported with rich interfaces including the two CF card slots

  • It has a variety of extended interface such as 1000BASE-T x 2, USB2.0 x 4, serial (RS-232C x 2). It has 2 CF card slots that can use for OS and data. They are very useful because you can use one slot for system start-up and the other for maintenance, system log, or taking away the collected data.
