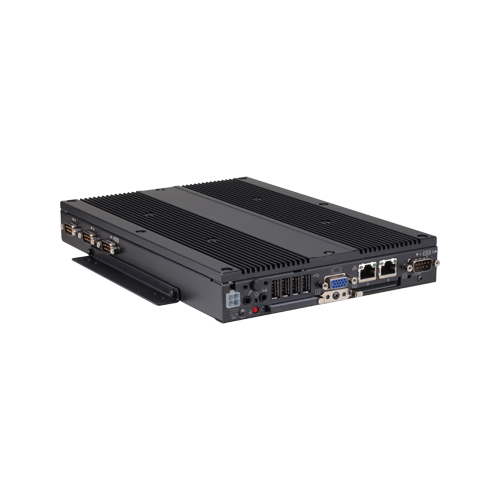

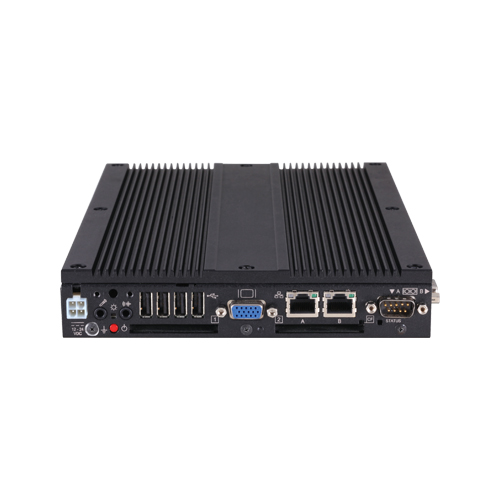

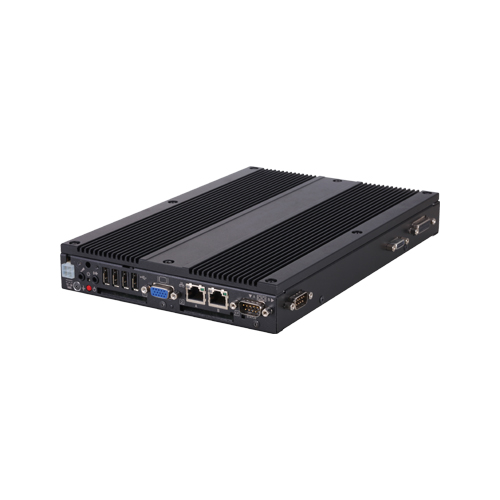

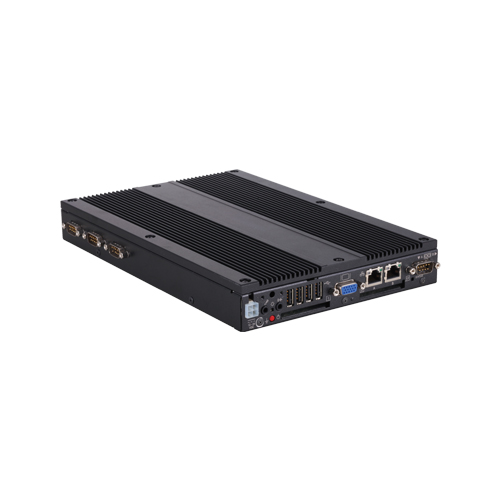

BX-110n BX-110n - Fanless Embedded PC / Slim A4 Size / Atom D510 + NM10 / DC Power Supply

  • Discontinued
  • Standard Warranty1 yr
  • Extended WarrantyAvailable
  • bx-110n_l_rgb_96dpi_500x500モーダルで開く
  • bx110n_r_rgb_96dpi_500x500モーダルで開く
  • bx110n_front_up_rgb_96dpi_500x500モーダルで開く
  • bx-110n_l_rgb_96dpi_500x500モーダルで開く
  • bx-110n_l_up_rgb_96dpi_500x500モーダルで開く
  • bx-110n_r_up_rgb_96dpi_500x500モーダルで開く
  • Immediate measurement control enabled by internal analog I/O, digital I/O, and counter input features
  • Serving the downsizing of equipment, a small footprint design for A4-sized or smaller installation area
  • Slitless/fanless design that reduces maintenance work
  • Falling-off prevention tools and fixing clamps provided to avoid trouble caused by disconnected cable
  • Remote power management function to reduce operation tasks
  • Major types of peripherals are supported with rich interfaces including the two CF card slots
  • *
    For details about an extended warranty, please contact us.

Ordering Information

Ordering Information

Model Description Certification
BX-110n-DC6000-C01 [Discontinued] [Last Order : 30 Apr, 2018, End of Repair Service : 31 Jan, 2023] BOX-PC BX-110n | Atom D510, Fanless, Embedded PC, Without OS(HDD), Analog RGB
  • CE marking
  • FCC compliant
  • VCCI
BX-110n-DC6121-C01 [Discontinued] [Last Order : 11 Nov, 2016, End of Repair Service : 31 Oct, 2022] BOX-PC BX110n | Atom D510 Embedded Fanless PC, Windows XP Pro (HDD100GB), Analog RGB
  • CE marking
  • FCC compliant
  • VCCI
BX-110n-DC6124-C01 [Discontinued] [End of Repair Service : 31 Jan, 2023] BOX-PC BX110n | Atom D510 Embedded Fanless PC, Japanese Win 7 Pro (HDD100GB), Analog RGB
  • CE marking
BX-110n-DC6311-C01 [Discontinued] [Last Order : 31 Jan, 2017, End of Repair Service : 31 Jan, 2023] BOX-PC BX110n | Atom D510 Embedded Fanless PC, WES2009 (CF2GB), Analog RGB
  • CE marking
  • FCC compliant
  • VCCI

Options

Expansion box

Item Item Name
ECH-PCI-CE-H2C PCI Bus Expansion Chassis (Short size, 2-Slots, BLACK)

Power Supply / AC Adapter

Item Item Name
IPC-ACAP12-04A AC Adapter (Input:100-240VAC, Output:12VDC 4A)

Storage

Item Item Name
CF-B CompactFlash(FIX DISK Spec.)
PC-HDD100S 2.5-inch 100GB SATA Hard Disk Drive

Other Accessories

Item Item Name
BX-BKT-VESA02 Metal fittings for VESA(75 x 75, 100 x 100mm)

Extended Warranty Service

Item Item Name
ESP-F5 Extended warranty service package (5 years service course) (Japan only)
ESP-S1 Extended warranty service package (Extension one year) (Japan only)
