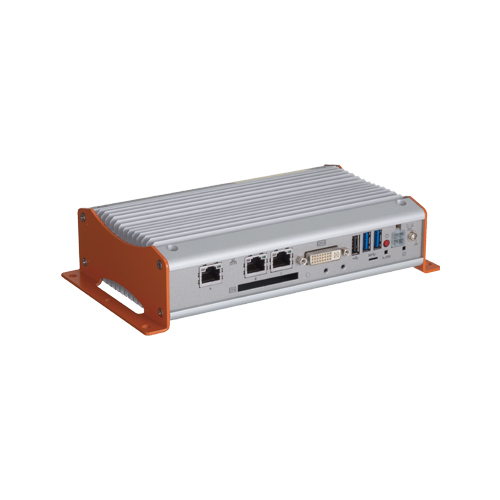

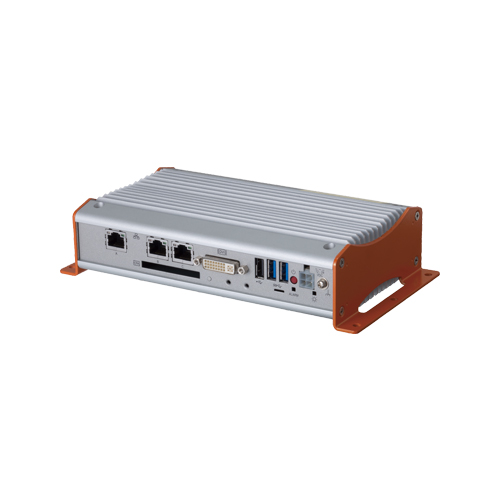

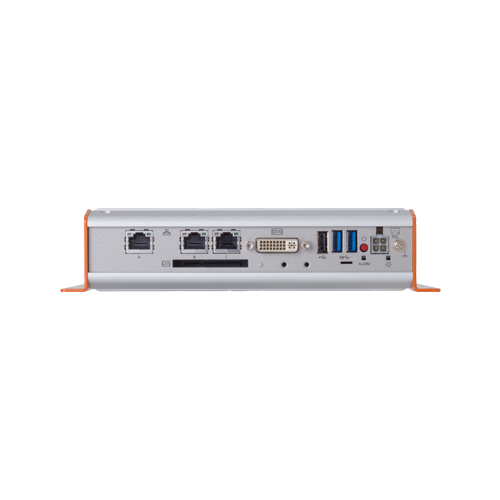

BX-825 BX-825 - Embedded IoT Gateway PC / 3x GbE / McAfee Security / Atom E3845 (BayTrail SoC) / DC Power Supply

  • Standard Warranty3 yrs
  • Extended WarrantyAvailable
  • Secured IoT device for edge computing
  • McAfee whitelist anti-virus software compatible
  • Three Gigabit LAN ports interconnect differing network hierarchy
  • Supports a wide range of temperatures with operations guaranteed from 0 to 65°C
  • Removal prevention fittings and cable ties are available to prevent problems caused by cable disconnections.
  • Slitless/fanless design that reduces maintenance work
  • *
    For details about an extended warranty, please contact us.

Ordering Information

Ordering Information

Model Description / Certification
BX-825D-DC760000 Intel Atom Processor E3845 1.91GHz, without OS model (Memory 4GB ECC, with mSATA SSD 32GB (MLC NAND), without OS)
  • CCC compliant
  • CE marking
  • FCC compliant
  • UL
  • VCCI
BX-825D-DC761824 Intel Atom Processor E3845 1.91GHz with OS pre-installed model (Memory 4GB ECC, with mSATA SSD 32GB (MLC NAND), Windows 10 IoT Enterprise LTSB 2016 64bit (Japanese, English, Chinese, Korean)+MaAfee)
  • CCC compliant
  • CE marking
  • FCC compliant
  • UL
  • VCCI
BX-825D-DC791824 Intel Atom Processor E3845 1.91GHz with OS pre-installed model (Memory 4GB ECC, with mSATA SSD 64GB (MLC NAND), Windows 10 IoT Enterprise LTSB 2016 64bit (Japanese, English, Chinese, Korean)+MaAfee)
  • CCC compliant
  • CE marking
  • FCC compliant
  • UL
  • VCCI

Options

Power Supply / AC Adapter

Item Item Name
PWA-65AWD1 AC Adapter(12VDC)
PWA-90AWD1 AC Adapter(12VDC)

Storage

Item Item Name
CFS-16GB-A 1.0-inch SATA CFast Card (SLC)
CFS-A 1.0-inch SATA CFast Card (SLC)
