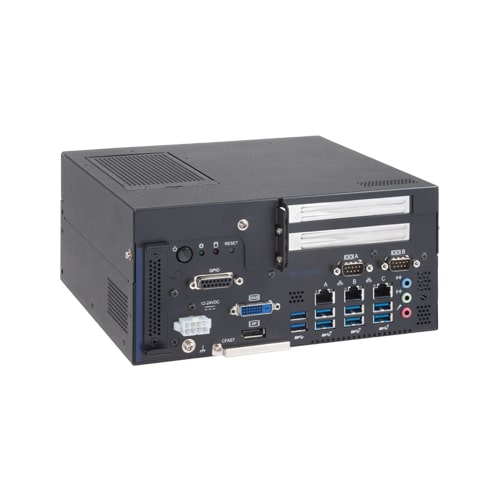

EPC-4000P2 Embedded-PC EPC-4000 series / Core i7-8700T (Coffee Lake + Q370) / 2 x PCIe(x8) Expansion Slots/ DC Power Supply

  • Standard Warranty3 yr
  • Extended WarrantyAvailable
  • Support for the Coffee Lake-S Intel Core processor series
  • Freely expandable peripherals and a rich variety of interfaces
  • Highly noise-resistant design with separated FG and SG
  • PCI Express x8 high speed expansion slot
  • "Power failure protection system" features power-off without OS shutdown
  • Custom BIOS supporting real-time OS
  • *
    For details about an extended warranty, please contact us.

Similar Models


Mechanical Design

Mounting Desktop

Software Support

Supported OS Windows 10 IoT Enterprise 2019 LTSC 64-bit

Core System

Processor Core i7-8700T; Core i5-8500T
CPU Generation (Development code) 8th Gen. (Coffee Lake-S)
CPU socket LGA1151
Memory up to 16GB
RAS Hardware monitor (Fan speed / Temperature / Voltage); Watchdog timer
AI Performance -
Security TCG TPM 2.0; NIST SP800-147 (BIOS Write Protect); Secure Boot USB Key


Video 1x DisplayPort; 1x DVI-D
LAN 3x 1000BASE-T
Wireless -
Audio 1x Line out; 1x Line in; 1x Mic-in
I/O 6x USB3.2 Gen2 (USB3.1); 2x USB3.2 Gen1 (USB3.0)
Memory card 1x CFast slot

Expansion Slot

Expansion bus 2x PCI Express(x8)
Drive bay 1x 2.5-inch bay (SATA)


Input voltage 12 to 24VDC


Operating temperature 0 to 55°C (32 to 131°F)
Storage temperature -20 to 85°C (-4 to 185°F)
Standards & Certifications CCC; CE; FCC Class A; UKCA; UL; VCCI Class A
